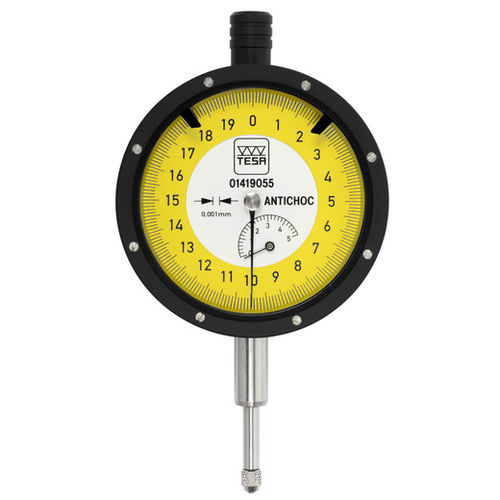

Dial comparator 01419055

Hysteresis - Hysteresis of indication error (MPEH): 3 µm Standard - Dimensions: EN ISO 463 Performances: factory standard Max. permissible errors - Indication error on the measuring range (MPE tot): 10 µm Indication error on 1/10 rotation (MPE 1/10): 3 µm Indication error on 1/2 rotation (MPE 1/2): 4 µm Indication error on 1 rotation (MPE 1): 5 µm Repeatability - Repeatability of the error of indication (MPER): 0,5 μm Material - Casing: metallic Mounting shank: stainless steel Plunger: stainless steel Dimensions - Insert thread: M2,5 Mounting shank: Ø 8 mm Dial - Rotating dial Moving tolerances indexes Degree of protection - IP40 Included in delivery - Dial gauge with mounted ball insert Ø 3,175 mm Declaration of conformity
