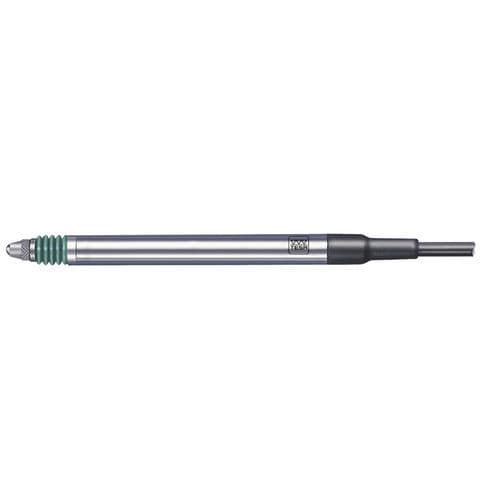

Measurement touch probe GTL22springelectronic
Add to favorites
Compare this product
Characteristics
- Type
- measurement
- Technology
- spring, electronic
- Measuring range
2 mm
(0.0787 in)
Description
Standard - DIN 32876
Coefficient of linear expansion - 0,2 µm/°C
Dimensions - Fixing shank: Ø 8 mm
Insert thread: M2,5
Ball insert Ø 3 mm
Cable: 2 m
Connector: 5p DIN45322
Degree of protection - IP65
Weight - Mobile weight: 6 g
Power supply - Stabilised supply voltage: ±15 V
Consumption: 15 mAh
Adjustable load: > 1kΩ
Output voltage: ± 2 V
Remark(s) - CAD files available on request
Downloadable data sheets on www.tesatechnology.com
Included in delivery - Measurement report
Declaration of conformity
