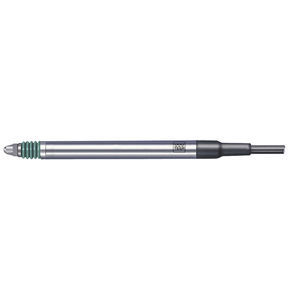

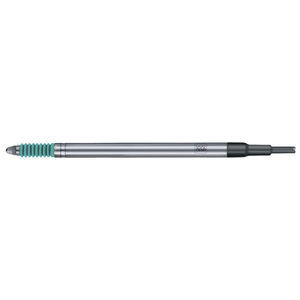

Measurement touch probe GT6 series

springelectronic

- Provided with an electronic box which converts the signal to obtain a direct current output signal - Measuring bolt mounted on a ball bearing - Separate guiding from the housing so that the movement of the measuring bolt moves easily even if the probe is not clamped appropriately - Guiding is insensitive to any radial force exerted on the measuring rod - 8 mm diameter probe housing, can be clamped over its entire length - Used for direct connection to a computer unit or interface equipped with an analogue input - The measuring force can be adjusted by changing the spring (depending on the probe model) - The inserts (measuring inserts) can be replaced or exchanged • PROTECTION - Degree of protection IP65 according to IEC 60529 - The guides are effectively protected against penetration of liquids (oils) or solids (dust) by sealing bellows of high elastic quality • OTHER Special versions on request: - Sensitivity: 2 V/mm, 5 V/mm, 10 V/mm - Output: 0 V to +10 V (max +10 V) Standard - DIN 32876 Coefficient of linear expansion - 0,2 µm/°C Dimensions - Fixing shank: Ø 8 mm Insert thread: M2,5 Ball insert Ø 3 mm Cable: 2 m Connector: 5p DIN45322 Degree of protection - IP65
