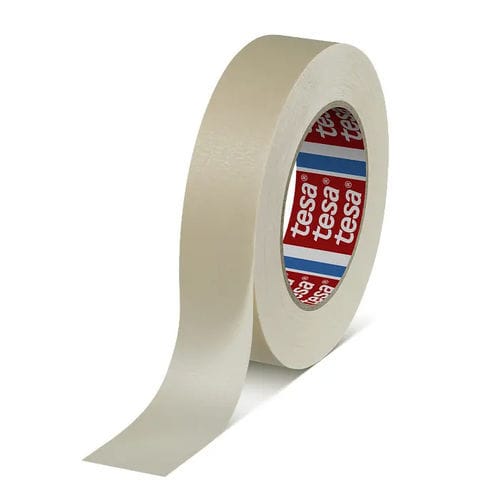

Paint masking tape 4330

high temperature-resistantfor automotive applicationsfor precision work

Short description
Paper masking tape for paintworks with oven-drying up to 140 °C, combining a fine crepe paper backing with a temperature-resistant natural rubber adhesive.

Sustainable Aspects

• 48% bio-based content in total product excluding liner (by weight).

Product Features

• Fine crepe paper backing paired with a high-adhesion, temperature-resistant natural rubber adhesive.
• Suitable for demanding automotive paint jobs with subsequent oven-drying up to 140 °C (water- or solvent-based paints).
• High tack and reliable adhesion to substrates such as paint, metal, glass, rubber and plastic.
• Paint and filler systems adhere well to the reverse side, minimising flaking.
• Excellent conformability for precise cornering and edge definition; good hand-tearability and clean removal.

Application Fields

• High-requirement automotive painting and general industrial paint masking with oven-drying cycles up to 140 °C.
• Masking on substrates including painted surfaces, metals, glass, rubber and plastics.
• Corner and edge masking where conformability and reverse-side anchorage of paint/filler are required.
• Masking of circuit boards prior to plating and other process masking applications.

Product Construction
Backing material: slightly-creped paper
Total thickness: 170 µm
Type of adhesive: natural rubber

Properties / Performance Values
Elongation at break: 12 %
Tensile strength: 39 N/cm
Temperature resistance (30 min): 160 °C
Temperature resistance (60 min): 140 °C
Easy to remove: yes
Hand tearability: very good

Adhesion Values
Adhesion to steel: 4.8 N/cm

Additional Info
tesa® 4330 is also available for converting/die-cutting with a paper liner (4330 PV1).

Characteristics / Technical Specifications

• Brand: tesa
• Model: tesa® 4330
• Backing material: slightly-creped paper
• Total thickness: 170 µm
• Type of adhesive: natural rubber
• Elongation at break: 12 %
• Tensile strength: 39 N/cm
• Temperature resistance (30 min): 160 °C
• Temperature resistance (60 min): 140 °C
• Easy to remove: yes
• Hand tearability: very good
• Adhesion to steel: 4.8 N/cm
• Bio-based content (excluding liner, by weight): 48%
