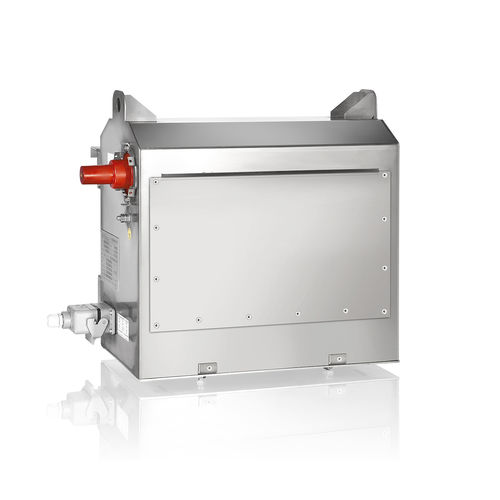

Integrated transformer TMApowerisolationdistribution
Add to favorites
Compare this product
Characteristics
- Type
- power, isolation, distribution, electrical power supply
- Configuration
- dry
- Applications
- industrial, for electrical networks, for indoor service, for outdoor service, substation, for railway applications, for photovoltaic applications, for industrial use
- Electrical characteristics
- single-phase, voltage, medium-voltage
- Mounting
- floor-standing, pole-mounted, plug-in, in-line, wall-mount, surface-mount, pole-mounted
- Norms
- IEC
- Other characteristics
- safety, primary, containerized, protection, secondary, control, flameproof, dry type epoxy resin, with copper windings, integrated, compact, AC, test, epoxy resin, auxiliary, switching, vacuum impregnation, frequency, hermetically-sealed
- Electric power
Min.: 200 W
Max.: 400 W
- Output power kVA
0.2 kVA, 0.4 kVA
(0.2719 hp, 0.5438 hp)- Primary voltage
Min.: 10 kV
Max.: 24 kV
- Secondary voltage
100 V
- Frequency
50 Hz, 60 Hz
Description
The peculiar characterisNcs of this innovaNve product consist in having a phase-to- phase VT to be connected to the MV line through plug-in bushings, type A interface, protected by two MV fuses, all contained in an ≥ IP 55 metal case; the connecNon to the motor is by means of a ≥IP55 plug. The metal casing is made in stainless steel, equipped with hooks for fixing to the pole.
