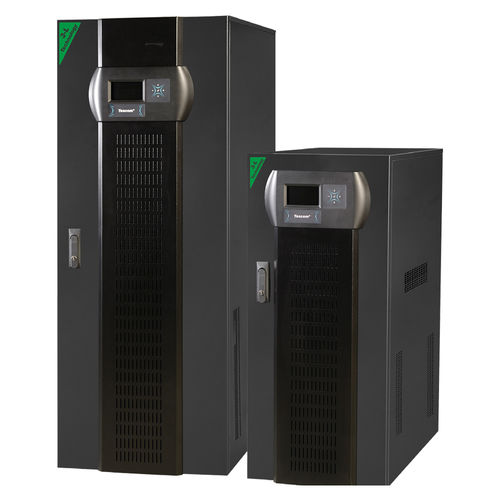

Three-phase frequency converter DS300C

digital displaycabinetindustrial

10-250 kVA TESCOM DS300C Frequency Converters are produced to provide the energy for your devices, which are powered by AC voltage and requires different frequency ranges. Our converters, which have many usage areas, mainly in maritime, aviation, industrial equipments and military applications, are designed for continuous operation with PWM and IGBT technology and convert 50Hz or 60Hz mains energy to 50Hz, 60Hz or 400Hz energy to supply your critical loads. Next pages of this catalog, you will find the technical specifications of 380VAC-60Hz converters, 208VAC-60Hz and 400Hz converters with inverter galvanic isolation transformers within 10-250KVA power range and 3/3 phase systems. Please contact with your sales representative for your different requests and questions. GENERAL SPECIFICATIONS DSP control 3-Level technology and fully digital structure (*) Less electronic components and SMD technology Low input current hormonic distortion (THDI) High input power factor High efficiency up to %95 Selectable input/output frequency range within 50-60Hz (For only DS300HC-60 models) High output power factor (PF:1.0) Advanced control and protection at input Current limititation at output, DC leakage, short circuit and overload protection Advanced TFT front panel (For 40kVA and above) (*) Advanced diognostic, easy monitoring and service intervention 512 event logs (46.000 alarm) (*) Clock and calendar (battery supported) Advanced communication 2 RS232 serial ports and programmable 4 dry contact outputs (12 contacts optional) (*) External REPO input Optional SNMP, MODBUS and Remote Monitoring Panel Advanced remote control features
