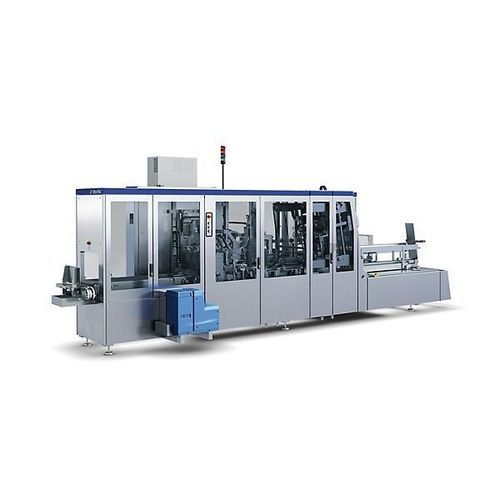

Wrap-around case packer

high-speedfor corrugated cartonsfor boxes

Overview
The Tetra Pak® Cardboard Packer 30 Speed (CBP30) is a downstream carton packing machine designed for long run-times and high output. It combines servo-driven critical functions with an accessible magazine layout to minimise changeover work and maintain stable blank handling.

Quick facts

• Servo-driven key axes for precise blank picking and package transfer
• Magazine capacity increased and accessible from ground level to reduce loading frequency
• Significant reduction of manual change settings to speed up production changeovers

Features

• Servo technology
  • Belt brake with simplified mechanical settings to reduce slipping and maintenance
  • Box pusher providing stable package delivery position and repeatability
  • Blank extraction delivering robust and precise pick-up with lower sensitivity to cardboard quality and thickness
  • Extended discharge unit for controlled handover to downstream conveyors
• Tray forming area
  • Total number of settings reduced by >50%
  • Magazine, tray forming and wraparound settings reduced by >60%
  • Common width settings located in tray forming and magazine areas for faster format changes
• Transfer belt & stop plate
  • All change settings removed in this area to accelerate production changeovers
• New magazine handling
  • Higher capacity blanks magazine reduces interruptions
  • Fully accessible at ground level for safer and faster loading
  • Synchronised magazine and feed chain settings
• Optimised operator access
  • Improved visibility and access to components for cleaning, maintenance and setting changes
  • Hotmelt unit positioned at floor level on the standard machine for easier refill and service

Options

• Hotmelt on demand: Centralised hotmelt feed from a large bin to reduce waste and operator intervention
• Discharge configurations: Passive roller conveyor for manual packing, driven discharge unit (left/right) or shared through-solution driven discharge for two packers to use one conveyor

Videos (available)

• Overview: Tetra Pak Cardboard Packer 34/30
• Tray forming area
• Transfer belt & stop plate
• Magazine handling
• Operator access
• Hotmelt on demand

Technical specifications

• Model name: Tetra Pak® Cardboard Packer 30 Speed (CBP30)
• Type: Cardboard packer for downstream packaging
• Key functions servo-driven: belt brake, box pusher, blank extraction, extended discharge control
• Magazine: increased capacity, ground-level accessibility, synchronised settings
• Changeover: >50% reduction in total settings; >60% reduction in magazine/tray/wraparound settings
• Operator ergonomics: enhanced access and visibility; hotmelt unit on floor level (standard)
• Discharge options: passive roller, driven left/right, through-solution shared discharge
