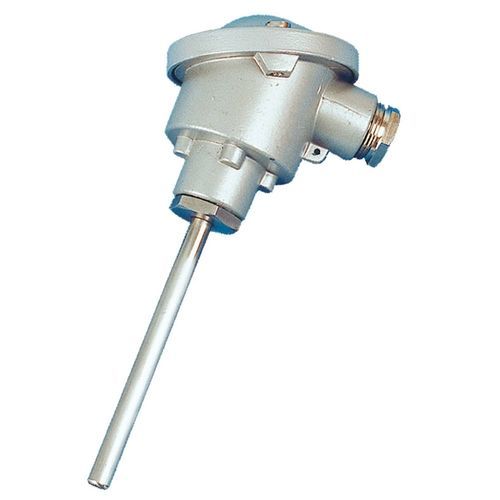

HVAC duct temperature sensor KFK03 passive

Pt100Pt1000NTC

Passive duct sensor for measuring air temperature and other gaseous media of HVAC applications (e.g. in supply and exhaust ducts). Designed for connection to superior controls systems. The sensor can be mounted by means of a mounting flange. Combined with a thermowell, it can be used as an immersion temperature sensor as well. • Application/type : Duct sensor, Immersion sensor • Purpose : Measure values • Measured values : temperature • Interface : Passive • Sensor : SI-Protection against permeation of humidity and mechanical stress (e.g. vibration), NTC10k, Pt1000 DIN cl. B, Ni1000 DIN cl. B, Pt1000 1/3 DIN, Pt100 DIN cl. B, Ni1000TK5000, Pt100 1/3 DIN, NTC10k Precon, NTC10k Carel, NTC1,8k, NTC5k, NTC20k, LM235Z, DS18B20 1-wire, FeT/Staefa, passive • Operating range temperature (°C) : -80..+260 • Operating ranges temperature (°C) : -50..+120, -50..+150, -50..+160, -80..+260 • Operating range humidity : max. 85% rH short term condensation • Accuracy temperature : ±0,1 K (typ. at 0 °C), ±0,3 K (typ. at 0 °C), ±0,4 K (typ. at 0 °C), ±0,2 K (typ. at 25 °C, temperature dependend) • Material in touch with media : Sensor probe, Ø=8 mm, stainless steel V4A (1.4571), length 108 mm, length 158 mm, length 208 mm, length 258 mm • Installation length (mm) : 100, 150, 200, 250 • Enclosure : shape B, aluminium • Protection (IP) : IP66, according to EN 60529 • Connection : cable entry M20 for wire Ø=7 mm, terminal block, max. 1,5 mm² • Connection cable : 2-wire, 3-wire, 4-wire • Mounting : when used as duct sensors: please use mounting flange MF8 stainless steel, for use as immersion sensors please use immersion pocket THVA • Device length (mm) : 78 • Device width (mm) : 70
