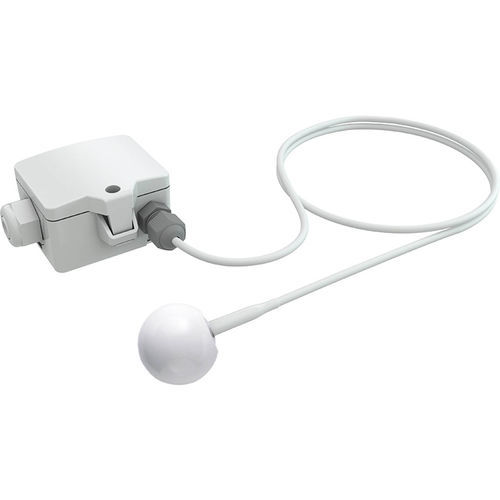

Pendulum temperature sensor RPF40+ passive

thermocoupleanalogjunction box

Pendulum sensor for temperature measurement in large rooms like open space offices, arcades and production plants. Optionally available with black ball as a radiation sensor with long time constants for radiant heaters. Especially designed for control and display systems. • Application/type : Pendulum sensor, Room sensor • Purpose : Measure values • Measured values : temperature, radiation temperature • Interface : Passive • Sensor : SI-Protection against permeation of humidity and mechanical stress (e.g. vibration) • Operating range temperature (°C) : -35..+70 • Output signal temperature : scaling analogue output, 0..+160 °C (default setting), -20..+80 °C (default setting), selectable from 4 temperature ranges -50..+50 | -20..+80 | -15..+35 | -10..+120 | 0..+50 | 0..+100 | 0..+160 | 0..+250 °C, adjustable at the transducer, optionally configurable via app or uConfig • Operating range humidity : max. 85% rH short term condensation • Accuracy temperature : ±0,3 K (typ. at 21 °C), depending on length of connection wire and sensor • Material in touch with media : Sensor head, PF31, white, black, Ø=40 mm • Enclosure : USE-S, impact- and shock-resistant enclosure with quick-release cover, PC • Colour : pure white • Protection (IP) : IP30, enclosure IP65, according to EN 60529 • Connection : removable cable entry flextherm M20 for wire Ø=4,5..9 mm, removable plug-in terminal, max. 2,5 mm² • Connection cable : PVC, 0,25 mm², white, black • Length connection wire (m) : 1, 2, 4, 6 • Delivery content : incl. mounting base enclosure USE-S pure white, incl. mounting set (screws and accessories) • Packaging length (mm) : 170 • Packaging width (mm) : 120 • Device length (mm) : 63
