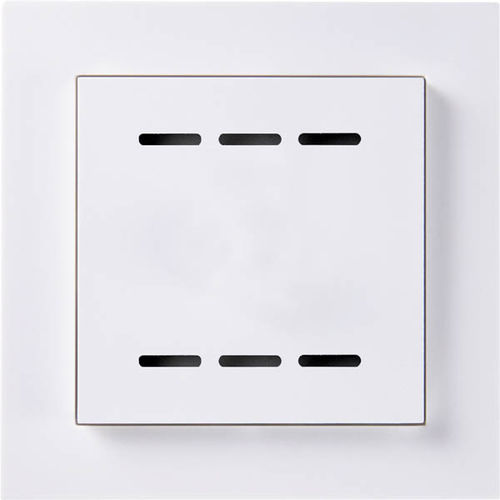

Room air quality sensor WRF06 passive

relative humiditytemperatureanalog

Flush-mounted room sensor for temperature, humidity and air quality measurement in living rooms, offices etc. Designed for connection to controller and display systems. Due to the visual appearance and the matching design frames from various switch range manufacturers, the device is particularly suitable for design-oriented facilities. It can be mounted separately in a single frame or in a multiple frame. Optionally, it is possible to add operating elements for controlling HVAC systems from the device. Stainless steel versions are available on request. • Application/type : Room sensor • Purpose : Measure values • Measured values : temperature • Interface : Passive • Sensor : without sensor, NTC10k, Pt1000 DIN cl. B, Ni1000 DIN cl. B, Pt1000 1/3 DIN, Pt100 DIN cl. B, Ni1000TK5000, Pt100 1/3 DIN, NTC10k Precon, NTC1,8k, NTC5k, NTC20k, LM235Z, passive • Operating range temperature (°C) : -35..+70 • Operating ranges temperature (°C) : -35..+70 • Operating range humidity : max. 85% rH non-condensing • Accuracy temperature : ±0,3 K (typ. at 0 °C), ±0,4 K (typ. at 0 °C), ±0,2 K (typ. at 25 °C, temperature dependend) • Enclosure : central disc in design of the manufacturer • Colour : white, pure white brilliant, pure white matt, pure white matt, aluminium, Jung aluminium, black, studio white matt, studio white brilliant, alpin white, polar white matt, polar white brilliant • Protection (IP) : IP20, according to EN 60529 • Connection : terminal block, max. 1,5 mm², pluggable, cable entry via rear opening • Switch ranges : Berker, Busch-Jaeger, Feller, Gira, Jung, Merten, Peha, (please specify the desired frame when ordering)
