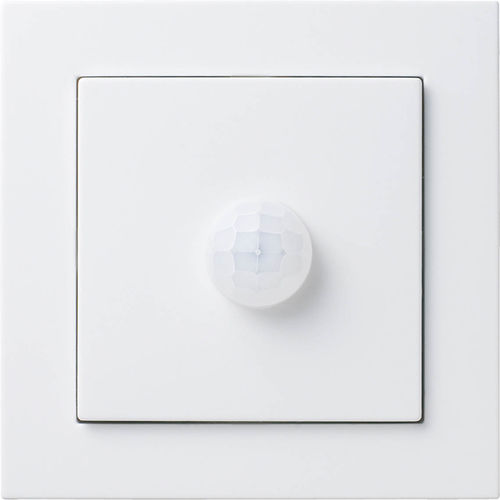

Passive infrared motion sensor WRF06I active

indoor

Flush-mounted sensor for motion detection in rooms. The WRF06I provides a relay contact for efficient light control or temperature reduction in unoccupied rooms. Especially designed for applications in residential and commercial buildings, offices and corridors. Available in different designs and colors of various switch frame manufacturers. The device is mounted in a flush-mounted standard EU box. • Application/type : Motion detector, Room sensor • Purpose : Measure values • Measured values : motion • Interface : Switch contact • Sensor : PIR (passive infrared) • Output switch contact : 1x contact NO, load max. 1 A, for 24 V =/~, floating, with follow-up time 8 seconds • Operating range temperature (°C) : -20..+60 • Operating range humidity : max. 85% rH non-condensing • Dectection range : cone-shaped, detection range, angle 110°/93°, 80 detection zones – at a distance of 2,8 m the detection area will be about 7x5 m • Power supply : 15..24 V = (±10%) SELV, 24 V ~ (±10%) SELV • Power consumption : max. 0,5 W (24 V =), 1,1 VA (24 V ~) • Enclosure : central disc in design of the manufacturer, (varies depending on switch range) • Protection (IP) : IP20, according to EN 60529 • Connection : plug-in terminal, max. 1,5 mm² • Switch ranges : Berker, Busch-Jaeger, Feller, Gira, Jung, Merten • Switch range Berker : S.1, B.3 aluminium, B.7, B.7 glass • Switch range Busch-Jaeger : Busch-axcent® with intermediate frame, Busch-balance® SI, future® linear with intermediate frame, solo® with intermediate frame • Switch range Feller : EDIZIOdue, STANDARDdue • Switch range Gira : E2, E3, Esprit, Event, Flächenschalter with intermediate frame, Standard 55
