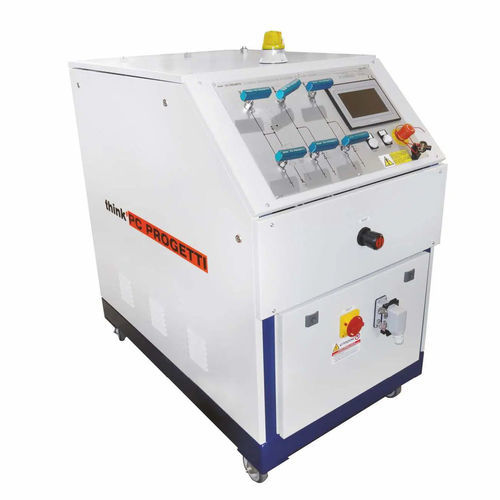

Test bench pressurization skid SKC-100

with programmable logic controller (PLC)

ENDURANCE CYCLING Automatic skid for endurance tests on trunnion mounted ball valves. The system supplies a total leakage flow of 0.7L/min (0,5L/min on downstream side + 0,2L/min from cavity). A control system will be interfaced directly to an axial piston motor able to perform opening/dosing movements on valves under test with the adjustable torque. Cycling is controlled by a PLC and a configuration LCD touch screen. ALLOWED FLUIDS : H2O + olio em. 5% SUPPLY WATER PRESSURE : 2.5 - 8 bar MAX WORKING PRESSURE : 250 bar ACCUMULATOR : 60 Liters COMPRESSION RATIO : 60:1 MOTOR TORQUE : 4,52Nm/barMAX 45 Kgm CONNECTION : NPT 3/8" PRESSURE MEASURE : LCD Touch screen ELECTRICAL SUPPLY : 2PH + T220V@50Hz DIMENSION (MECH) : 600(L) x 1150(P) x 1500(H)
