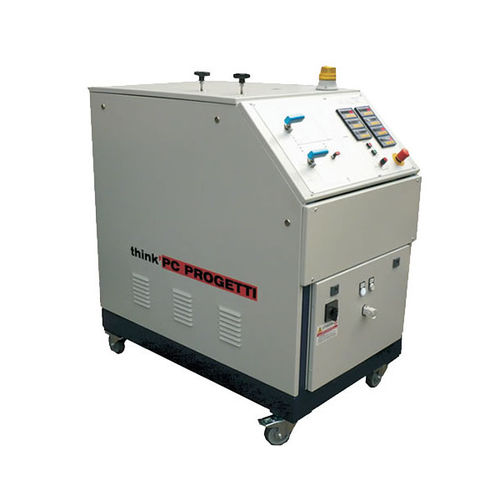

Valve pressurization skid SKMM-100/FS

for test benches

MOVABLE FIRE SAFE TEST PRESSURIZATION SKID PRESSURIZATION SKID for FIRE SAFE TEST according to API-607 / API-589 / API–6FA. This pressurization skid has all process equipment to perform FIRE SAFE tests on valves with stem packing or quarter turn shutoff valves. It has up to 8 thermocouples with calorimeter cubes (where necessary). It has an internal water reservoir of 120L. its maximum working pressure is 1600 bar. Full digital reports can eb obtained through RS232 MODBUS RTU connection and data can be collected with certification software TestRECFS-M. ALLOWED FLUIDS : Plain water WATER RESERVOIR : internal 120 Liters MAX WORKING PRESSURE : 700/ 1050/ 1380/ 1600 bar FILLING FLOW : 70 Liters/min AIR DRIVEN BOOSTER RATIO : 1:100/ 1:150/ 1:225 / 1:250 REFERENCE STD : API-607 / API-589 / API-6FA TEMPERATURE MEASURE : Nr. 5 TC type K with Digital display PRESSURE MEASURE : Nr. 2 pressure transmitters with Digital Display. WATER LEVEL MEASURE : Nr. 1 Pressure transmitter with Digital Display DIMENSIONS (MECH) : 600 (L) x 1150 (D) x 1500 (H)
