Valve pressurization skid SKA-100/GAS
for test bencheswith programmable logic controller (PLC)

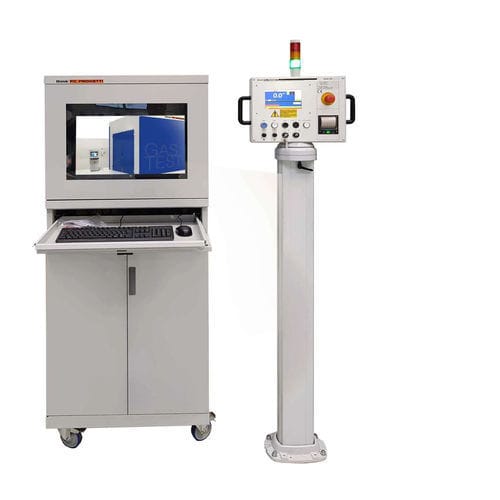

Valve pressurization skid - SKA-100/GAS - Think PC PROGETTI - for test benches / with programmable logic controller (PLC)

Valve pressurization skid - SKA-100/GAS - Think PC PROGETTI - for test benches / with programmable logic controller (PLC) - image - 2

Valve pressurization skid - SKA-100/GAS - Think PC PROGETTI - for test benches / with programmable logic controller (PLC) - image - 3

Valve pressurization skid - SKA-100/GAS - Think PC PROGETTI - for test benches / with programmable logic controller (PLC) - image - 4

Add to favorites

Compare this product

Characteristics

Options: valve, for test benches, with programmable logic controller (PLC)

Description

AUTOMATIC GAS PRESSURIZATION SKID FOR BUNKERED TESTING BAY Automatic pressurization skid for bunker testing bay. It is installed inside a bunker, but it is controlled by a console outside the safety perimeter. The skid has been designed to perform GAS tests on process components, with a 2-step pressurization along with the possibility to perform VISUAL inspections of components, ruling the access to the protection bunker. A certification software allows operators to collect all testing result and graphing waveforms, and configure the inputs with test parameters. MAX WORKING PRESSURE : 450 / 700 / 1050 / 1550 bar TEST MEDIA : N2 - He GAS BOOSTER : Air driven PROCESS STYLE : Bidirectional seat test CONTROL SYSTEM : Automatic & Manual (SCADA) LEAK DETECTION : Digital bubbles counter Mass flowmeters PRESSURE MEASURE : Digital w/ pressure port for master gauge DIGITAL INTERFACE : Ethernet LAN CERTIFICATION SW : TestREC® DIMENSIONS (MECH) : 400 (L) x 1000 (P) x 1200 (H)
