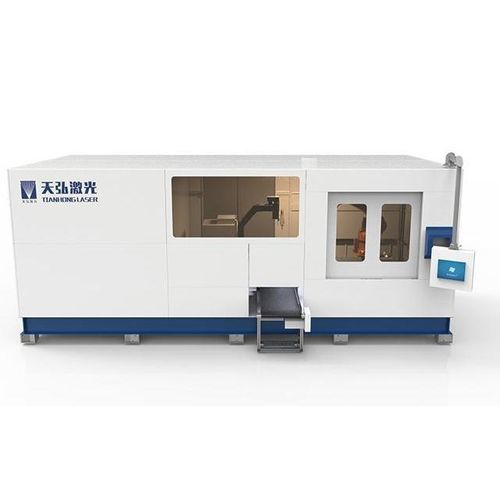

Laser cutting machine TH-RCF1725K3D laserfor metaltube
Add to favorites
Compare this product
Characteristics
- Technology
- laser, 3D laser
- Material
- for metal
- Product handled
- tube
- Control type
- CNC
- Workpiece loading
- automated loading/unloading
- Configuration
- 6-axis
- Other characteristics
- automatic, high-speed, three-dimensional, fully-enclosed, multi-axis
- Laser power
Max.: 1,500 W
Min.: 700 W
- Repeatability
0.05 mm
(0.002 in)- Weight
230 kg
(507.06 lb)- Load capacity
20 kg
(44.1 lb)
Description
Product summary
The TH-RCF1725K shaped tube laser cutting workstation is designed for high-speed, three-dimensional cutting of various special-shaped tubes used in automotive, hardware and related industries. Cutting thickness and speed depend primarily on laser power.
Features
Sample display
Examples of processed parts and sample images from shaped tube laser cutting operations.
Technical specifications
The TH-RCF1725K shaped tube laser cutting workstation is designed for high-speed, three-dimensional cutting of various special-shaped tubes used in automotive, hardware and related industries. Cutting thickness and speed depend primarily on laser power.
Features
- Six-axis laser cutting robot with multi-axis rotation and caliper-type rotary tooling
- Fully automatic CNC program control
- Recommended six-axis robot brand: Kawasaki
- Enclosed structure for enhanced safety and environmental protection
- Equipped with automatic loading and unloading mechanism
- Production cycle and automation levels configurable to customer requirements
Sample display
Examples of processed parts and sample images from shaped tube laser cutting operations.
Technical specifications
- Commodity name: Shaped Tube Laser Cutting Workstation
- Commodity ID: 1475857169772072960
- Model: TH-RCF1725K
- Laser power: 700W–1500W
- Robot brand and model: Kawasaki RS020N
- Robot machining radius: 1725mm
- Robot repeatability: ±0.05mm
- Robot rated load: 20kg
- Robot weight: 230kg
