Laser cutting machine TH-RCF1550A（F）-15003D laserfor metalfor steel
Add to favorites
Compare this product
Characteristics
- Technology
- laser, 3D laser
- Material
- for metal, for steel
- Product handled
- sheet metal, panel
- Associated function
- for welding
- Applications
- for industrial applications, for the automotive industry
- Workpiece loading
- with automated loading
- Configuration
- double table
- Other characteristics
- automatic, high-speed, 3D, fully-enclosed, robotic
- X travel
1,200 mm
(47.24 in)- Y travel
500 mm
(19.69 in)- Z travel
1,550 mm
(61 in)- Laser power
1,500 W
- Repeatability
0.05 mm
(0.002 in)- Overall length
4,000 mm
(157 in)- Maximum width
2,200 mm
(87 in)- Height
2,000 mm
(79 in)- Load capacity
20 kg
(44.09 lb)
Description
Product overview
Designed for high-speed three-dimensional cutting and welding of complex-shaped parts in automotive, hardware and related industries. The machine uses a 1500W laser and a double-station layout to enable continuous loading and processing, supporting both cutting and welding operations. Processing capacity depends on selected laser power.
Applications
Key features
Product details

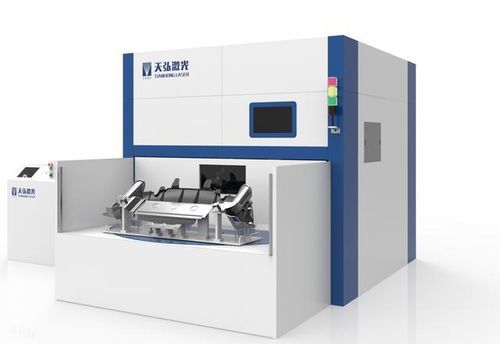

Commodity name: Surrounding Three-dimensional Double-station Laser Cutting Machine
Commodity ID: 1475857240601284608
Model: TH-RCF1550A（F）-1500
Laser power: 1500W
Processing format: 1200mm*500mm
Technical specifications
Designed for high-speed three-dimensional cutting and welding of complex-shaped parts in automotive, hardware and related industries. The machine uses a 1500W laser and a double-station layout to enable continuous loading and processing, supporting both cutting and welding operations. Processing capacity depends on selected laser power.
Applications
- High-speed 3D cutting and welding of automotive body parts and components
- Manufacture and finishing of complex hardware and metal fittings
- Batch production requiring fast station turnover and high throughput
Key features
- Double-station configuration for alternating loading and processing to increase productivity
- Capable of cutting and welding complex, curved and special-shaped parts
- Enclosed structure for improved operator safety and environmental control
- High level of automation for simplified operation and reduced cycle times
Product details
Commodity name: Surrounding Three-dimensional Double-station Laser Cutting Machine
Commodity ID: 1475857240601284608
Model: TH-RCF1550A（F）-1500
Laser power: 1500W
Processing format: 1200mm*500mm
Technical specifications
- Robot arm: 1550mm
- Robot payload: 20kg
- Processing range: 1200mm*500mm
- Number of stations: 2
- Robot positioning accuracy: ±0.05mm
- Robot trajectory accuracy: ±0.15mm
- Physical dimensions: 4000*2200*2000mm (subject to the product)
- Operating environment: 0~40℃
- Laser power: 1500W
