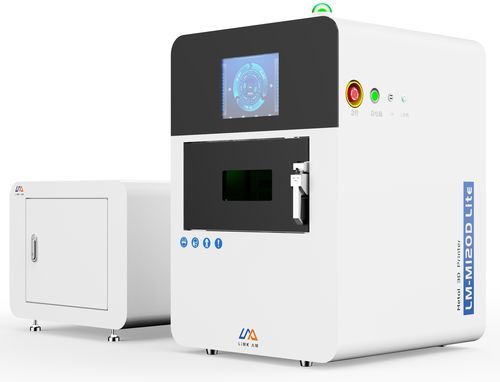

Powder bed fusion laser sintering machine LM-M120D Lite
LPBFfor titaniumcobalt-chromium

Powder bed fusion laser sintering machine - LM-M120D Lite - Tianhong Laser - LPBF / for titanium / cobalt-chromium

Add to favorites

Compare this product

Go to the Tianhong Laser website for more information

Characteristics

Technology: powder bed fusion, LPBF
Treated material: for titanium, cobalt-chromium, for metal, for stainless steel
Domain: for tooling, for the automotive industry, for dental laboratories, prototyping, for aerospace applications
Other characteristics: compact, plug & play, benchtop

Description

Overview
The LM-M120D Lite is a desktop-to-industrial metal 3D printer based on laser powder bed fusion (LPBF). It provides a compact footprint with integrated powder handling and filtration systems, suitable for producing dense metal components in dental, aerospace, mold, automotive and electronics applications. Standard laser power is 500 W with an optional 1000 W configuration. Build chamber control supports oxygen levels ≤100 ppm and operation under Nitrogen or Argon.

Key features

LPBF process for dense, high-strength metal parts
Compact, desktop-capable footprint for space-constrained environments
Integrated powder handling and modular filtration to enable single-operator workflows
Supports dental-grade precision and fine layer thicknesses for crowns, bridges and implant guides
Compatible with Co-Cr, stainless steel, titanium alloys and other industrial metals

Structure & operation

Compact design: 650 × 600 × 930 mm (L × W × H), machine weight ~180 kg
Integrated systems: powder feed, collection and filtration combined with touch-screen control and modular access for maintenance
Operator workflow: plug-and-play deployment, single-technician operation and visual monitoring window
Safety & atmosphere: chamber O2 ≤100 ppm, inert gas (N2/Ar) supply, warning light indicators

Technical specifications

Build volume: φ120 × 100 mm
Layer thickness: 20–60 μm
Typical process tolerance: ±50 μm (application-dependent)
Laser power: 500 W (standard) / 1000 W (optional)
Scanning speed: 7 m/s
Filtration system dimensions: 50 × 50 × 65 mm
Data format: STL (other convertible formats supported)
Complementary software: TH-3Dprint
Power supply: 220 V

Applications

Dental parts: crowns, bridges, implant guides
Aerospace and energy: structural and lightweight components
Mold & tooling: shoe molds, injection molds and prototype tooling
Automotive and consumer electronics: functional metal prototypes and small-series parts
