PBF laser sintering machine LM-M250G

powder bed fusionfiber laserfor non-ferrous metals

Product name

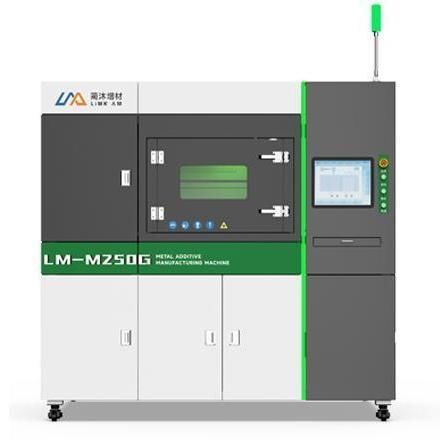

Green-light metal 3D printer LM-M250G

Product description
LM-M250G features a build volume of 256×256×320 mm³ and a 500W green fiber laser designed to improve processing of high-reflectivity materials that absorb poorly in the infrared. The modular design simplifies operation and maintenance. The machine offers a compact layout, intuitive operation and an open control system for extended parameter settings and broader material compatibility.

Specifications
Overall dimensions: L(2118)×W(1304)×H(2034) mm³
Compatible materials: pure copper, copper alloys, refractory metals, composite materials, other conventional metals
Build volume: 256×256×320 mm
Chamber oxygen content: ≤100 ppm
Scan speed: 7 m/s
Shielding gas: nitrogen/argon
Spot diameter: 50–120 μm
Data format: STL files or other converted formats
Laser: 500W (green)
Control system: TH-3Dprint (Tianhong proprietary)
Powder layer thickness: 20–120 μm
Power supply & consumption: 380V; 20KW
Maximum build rate: up to 25 cm³/h
Machine weight: 1.8 t

Features / Technical specifications

• Build volume: 256×256×320 mm
• 500W green fiber laser optimized for high-reflectivity materials
• Compatible materials: pure copper, copper alloys, refractory metals, composite materials, other conventional metals
• Modular design for easier operation and maintenance
• Open control system supporting extended parameter configuration
• Chamber oxygen content: ≤100 ppm
• Scan speed: 7 m/s
• Spot diameter: 50–120 μm
• Powder layer thickness: 20–120 μm
• Power requirements: 380V; 20KW
