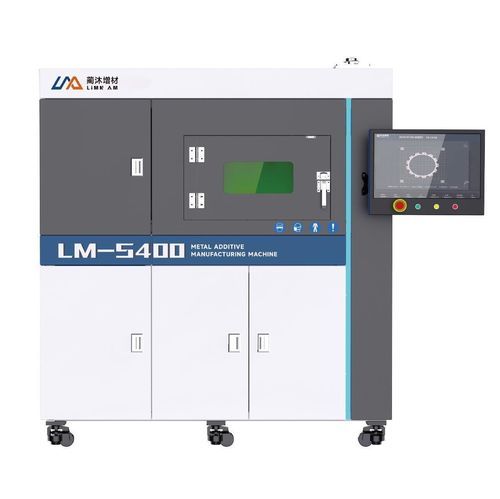

PBF laser sintering machine LM-S400

powder bed fusionLPBFfor aluminum

Short description
The LM-S400 is a metal powder bed melting (PBF-LB/M) 3D printer designed for high-precision metal parts production, optimized for shoe-mold details, aerospace, automotive and energy components. It combines a 406×206×230 mm build volume with a three-laser configuration and fine-resolution capability.

Highlights

• Metal powder bed melting (PBF-LB/M) technology
• Three 500 W lasers for increased productivity
• Filtration circulation and controlled-atmosphere chamber (O2 ≤ 100 ppm)
• Tailored powder handling system with high reuse rate; compatible with martensitic stainless steel and aluminum alloys

Build & performance summary
Overall dimensions: 1770 × 1260 × 1900 mm
Build volume: 406 × 206 × 230 mm
Powder layer thickness: 20 μm – 120 μm
Typical fine resolution: 20 μm (suitable for fine sole textures and logos)
Forming speed: up to 50 cm³/h (three lasers)
Scanning speed: 3 × 7 m/s
Laser spot diameter: 50 μm – 80 μm
Light source: 500 W × 3
Electrical consumption: 380 V; 19 kW (typ.) / 34 kW (listed)

Applications

• Shoe mold production (captures fine sole textures and logos)
• Aerospace components
• Automotive parts and tooling
• Energy, medical and consumer-electronics metal parts

Technical specifications

• Overall dimensions (L×W×H): 1770 × 1260 × 1900 mm
• Build volume: 406 × 206 × 230 mm
• Scanning speed: 3 × 7 m/s
• Laser spot diameter: 50–80 μm
• Laser power: 3 × 500 W (standard), 3 × 1000 W (optional)
• Powder layer thickness: 20–120 μm
• Forming speed: max 50 cm³/h (three lasers)
• Applicable materials: stainless steel, aluminum alloys
• Chamber oxygen level: ≤ 100 ppm
• Electrical requirements: 380 V; 19 kW (typ.) / 34 kW (listed)
• Protective gas: Nitrogen or Argon
• Data format: STL or convertible file
• Complementary software: TH-3Dprint
• Machine weight: 1.5 t
