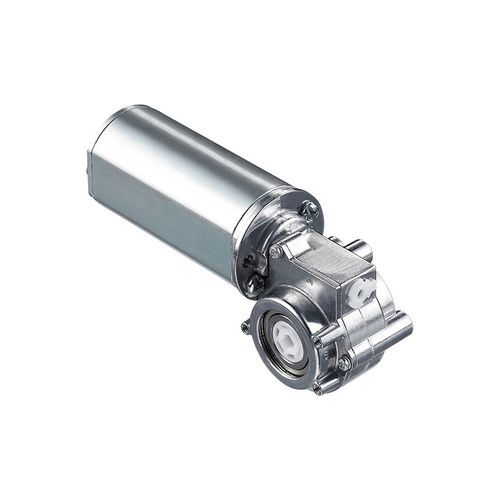

DC gear-motor TGM3 seriesgear trainright angle24 V
Add to favorites
Compare this product
Characteristics
- Motor type
- DC
- Type
- gear train
- Shaft orientation
- right angle
- Voltage
- 24 V
- Torque
- 1 - 5 Nm
- Performance
- high-speed
- Product applications
- industrial, for lifting applications
- Other characteristics
- compact, low-noise
- Operating temperature
Max.: 45 °C
(113 °F)Min.: 5 °C
(41 °F)
Description
The TGM3 series is TiMOTION's compact size gear motor. It was designed primarily for ergonomic applications like height adjustable workstations and tables, but can be used in many other applications. This economical product allows for fast, smooth and quiet adjustment of built-in spindles through the use of external limit switches. Shafting allows for the mechanical synchronization of dual spindles.
• Max. speed at max. load: 61RPM (±5%)
• Max. speed at no load: 259RPM (±5%)
• Output signals: Hall sensors
• Hexagon hole for the shaft by 6mm diameter
Catalogs
TGM3
6 Pages
