DC gear-motor TGM5 series
gear trainright angle24 V

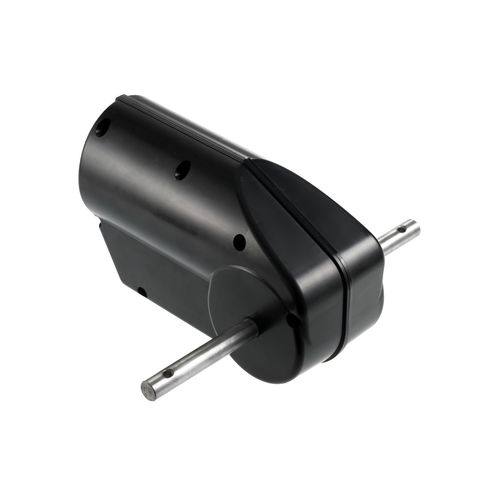

DC gear-motor - TGM5 series - TiMOTION Europe - gear train / right angle / 24 V
DC gear-motor - TGM5 series - TiMOTION Europe - gear train / right angle / 24 V
Add to favorites
Compare this product
Go to the TiMOTION Europe website for more information

Characteristics

Motor type
DC
Type
gear train
Shaft orientation
right angle
Voltage
24 V, 12 V, 36 V
Torque
10 - 20 Nm
Performance
low-noise
Product applications
for medical equipment, for hospital beds
Operating temperature

Min.: 5 °C
(41 °F)

Max.: 45 °C
(113 °F)

Description

TiMOTION’s TGM5 series gear motor was designed primarily for medical applications, but can be used in a wide range of other applications that require a water resistant motion product. This economical, high torque product allows for fast, smooth and quiet adjustment of built-in spindles through the use of external limit switches. Shafting allows for the mechanical synchronization of dual spindles. • Max. speed at max. load: 88RPM (±5%) • Max. speed at no load: 117RPM (±5%) • IP rating: IP66W • Certificate: UL962 • Output signals: Hall sensors • Options: Motor brake • Hexagon hole for the shaft by 12mm diameter

Catalogs

TGM5
TGM5
5 Pages
