Grinding machine TB-50T

grinding machine
grinding machine
grinding machine
grinding machine
grinding machine
grinding machine
Add to favorites
Compare this product


Spindle speed

Max.: 50 rpm
(314 rad.min-1)

Min.: 33 rpm
(207 rad.min-1)


Max.: 7 kW
(9.52 hp)

Min.: 0.8 kW
(1.09 hp)

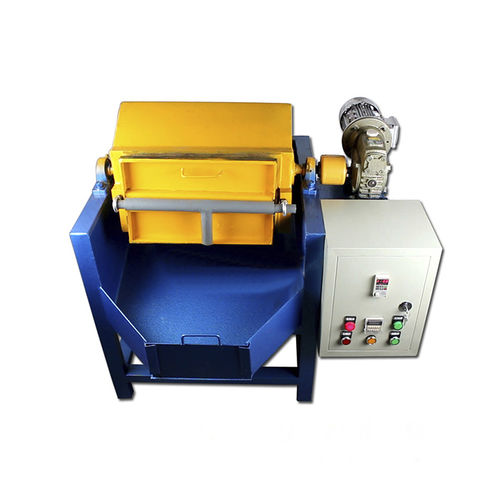

Roll barrel grinding and polishing machine(Roller batch processing polishing machine) The barrel grinding and polishing machine adopts a horizontal rotary barrel, and the inner barrel is covered with natural rubber lining for wear resistance, acid and alkali resistance, and can prevent work damage. The belt pulley is driven by the motor, and the belt pulley drives the drum to rotate horizontally. The speed is between 33~50r/min. It is commonly used for all kinds of hardware, electronics, plastics, jewelry and other parts to sharpen, deburr, chamfer, and remove oil. , Rust removal, surface polishing.
