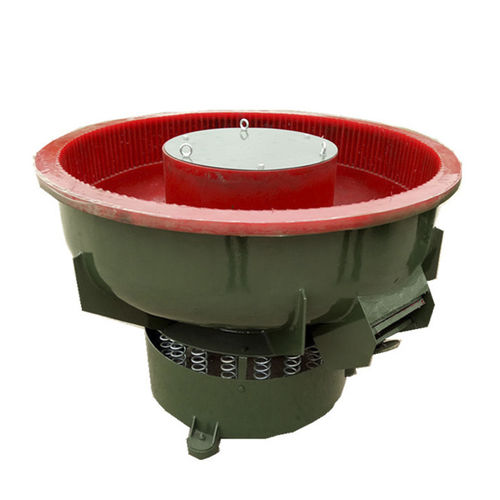

Polishing vibratory finishing machine TB-300A
deburringindustrialfor sheet metal

polishing vibratory finishing machine
polishing vibratory finishing machine
polishing vibratory finishing machine
polishing vibratory finishing machine
polishing vibratory finishing machine
polishing vibratory finishing machine
Add to favorites
Compare this product


Associated function
polishing, deburring
Treated material
for sheet metal, for plastics, metal, for cast iron, copper, for iron, for aluminum, stone, for titanium alloys, wood, steel
Other characteristics
automatic, continuous

Min.: 3.7 kW
(5.03 hp)

Rotational speed

Min.: 1,450 rpm
(9,110.62 rad.min-1)


Vibration grinding polishing machine, polyurethane lining Large output, high efficiency, energy saving, long life, low noise, no pollution and high quality. 1. Use the vibration deviation produced by the inertial vibration exciter (vibration motor eccentric block) to make the workpiece and the abrasive move in the working groove of the machine, so that the workpiece and the abrasive run in one direction and rub each other to achieve the effect of surface treatment. 2. It is suitable for the finishing processing of large quantities of medium, small and size parts, with good processing effect and short time-consuming. 3. The original size and shape of the parts are not damaged during the processing process, and it is suitable for the finishing of various shapes of workpieces. 4. The inner lining of the container is made of PU material (polyurethane); it prevents direct contact between the workpiece and the metal, and greatly extends the service life of the machine. 5. It is easy to operate, and the processing effect of parts can be checked at any time during the working process. A PLC control electric box can be optionally installed to realize automatic operation. Volume (L) 30 60 80 150 200 300 400 600 900 1200 using electric 380/50 Working slot width (mm) 150 190 230 240 260 285 330 380 435 640 Working groove inner diameter (mm) 450 350 700 900 1050 1200 1300 1700 1900 2200 Thickness (mm) 6-15 6-20 8-22 10-25 15-30 Dimensions L*W*H(mm) 560*510*620 680*640*690 830*780*750 1050*1050*850 1200*1200*900 1350*1350*1000 1450*1450*1050 1850*1850*1350 2160*2160*1400 2350*2350*1500 weight (kg) 55 85 95 300 400 560 600 1300 1800 3000
