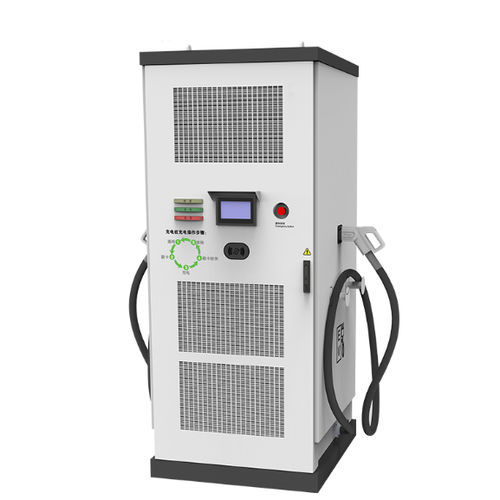

DC charging station TTHGZQW

floor-mounted2 charging cables

Average efficiency ≥96% at nominal output power One charger with two outputs, simultaneously charging Ethernet/3G/4G/OCPP communication High protection grade as IP54 APP operation or RFID authentication or plug and play CE certificate NB 1282 OEM/ODM LOGO customize Phases/Lines 3 phases+neutral+PE Voltage 380VAC±20% Frequency 50Hz±10% Current (max.) CCS 2 200A,CHAdeMO 125A,GB/T 250A,Up to two charging guns Cable Lenth 5m Connector CCS2 or CHAdeMO or GB/T Power Factor ≥0.99 THD Value ≤5% Stable Voltage Accuracy ≤±0.5% Stable Current Accuracy ≤±1% Efficiency ≥96% at nominal output power Housing Material Galvanized steel Installation Method Floor-stand LED Indicator 7 inches Emergency Stop Button Mushroom headed type Payment Method RFID CARD External Ethernet, and 3G/4G Communication Protocal OCPP1.6J Working Temperature -30ºC-+55ºC Working Altitude ≤2000M Application Site Indoor/Outdoor Cooling Method Forced air cool Multiple Protection Over Current, Under Current, Over Voltage, Residual Current, Surge Protection, Short Circuit, Earth Fault at input and output, Input Phase reversal, Emergency Shut-down with alarm, over temperature, Protection against electric shock. Product Dimension 900*1085*2167(W*D*H) Net Weight 230KG External Packing Wooden case
