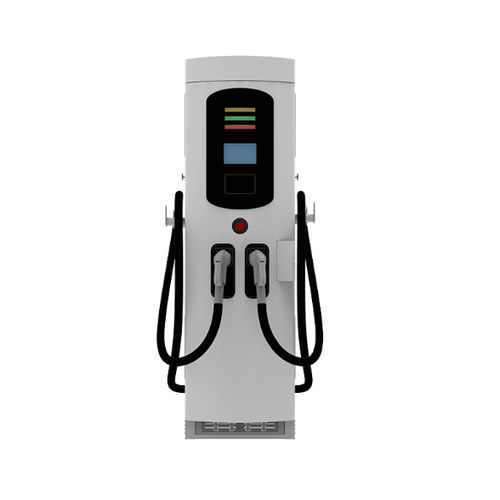

DC charging station THGZQW

floor-mounted2 charging cables

Average efficiency ≥96% at nominal output power One charger with two outputs, simultaneously charging Ethernet/3G/4G/OCPP communication High protection grade as IP54 APP operation or RFID authentication or plug and play CE certificate NB 1282 OEM/ODM LOGO customize Phases/Lines - 3 phases+neutral+PE Voltage - 380VAC±20% Frequency - 50Hz±10% Current (max.) - CCS 2 200A,CHAdeMO 125A,GB/T 250A Cable Lenth - 5m Connector - CCS 2 or CHAdeMO or GB/T,Up to 2 charging guns Power Factor - ≥0.99 THD Value - ≤5% Stable Voltage Accuracy - ≤±0.5% Stable Current Accuracy - ≤±1% Efficiency - ≥96% at nominal output power Housing Material - Galvanized steel Installation Method - Floor-stand LED Indicator - 7 inches Emergency Stop Button - Mushroom headed type Payment Method - RFID CARD External - Ethernet, and 3G/4G Communication Protocal - OCPP1.6J Working Temperature - -30ºC-+55ºC Working Altitude - ≤2000M Application Site - Indoor/Outdoor Cooling Method - Forced air cool Multiple Protection - Over Current, Under Current, Over Voltage, Residual Current, Surge Protection, Short Circuit, Earth Fault at input and output, Input Phase reversal, Emergency Shut-down with alarm, over temperature, Protection against electric shock. Warranty - 1 year Product Dimension - 550*650*1950mm(W*D*H) 550*800*1950mm(W*D*H) Net Weight - 180KG External Packing - Wooden case
