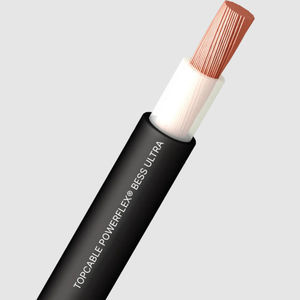

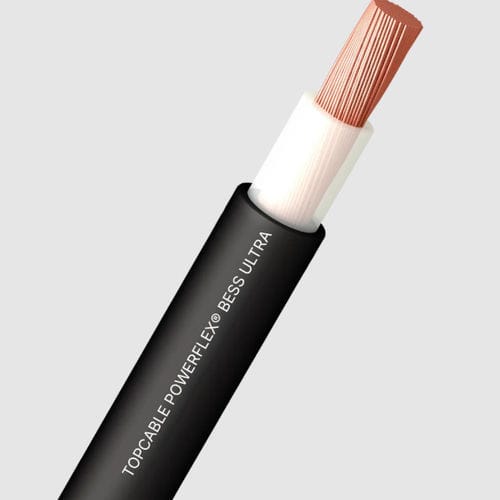

Power cable POWERFLEX® BESS ULTRA

impact-resistantoil-resistantUV-resistant

Summary
POWERFLEX® BESS ULTRA 1,8/3kV is an extra-flexible power cable engineered for demanding battery energy storage systems (BESS) and critical grid installations. Its flexibility simplifies routing in confined or complex layouts while offering insulation and sheath materials suitable for outdoor, buried and conduit installations.

Typical applications

• DC main power distribution: consolidating power from multiple battery racks to the central DC bus with robust insulation and flame-retardant properties.
• Inter-cell and module connections: internal wiring between cells and modules within cabinets and racks for secure DC transfer.
• AC integration and grid connection: connections between the battery system inverter and facility or utility grid for stable export and synchronization.

Construction

• Conductor: Copper, class 5 (flexible) and class 6 (ultra-flexible) up to 150 mm².
• Insulation: XLPE, natural colour.
• Outer sheath: PVC (flexible), black colour.

Standards & compliance

• According to IEC 60502-1.
• Standards and approvals: CE; RoHS.
• Construction Products Regulation: Reaction to fire classification Eca (EN 50575).

Key characteristics

• Electrical performance: Design voltage 1,8/3 (3,6) kV AC; 4,5 (5,4) kV DC.
• Thermal performance: Maximum conductor temperature 90°C; maximum short-circuit temperature 250°C (max. 5 s); minimum service temperature -40°C (fixed and protected installations); minimum installation and handling temperature 0°C (on cable surface).
• Fire performance: Flame non-propagation according to EN 60332-1 and IEC 60332-1; CPR reaction to fire: Eca (EN 50575); reduced halogen emissions (Chlorine <15%).
• Mechanical performance: Minimum bending radius during installation 5× cable diameter (≤ 50 mm) and 6× cable diameter (> 50 mm); impact resistance AG2 (medium severity).
• Environmental performance: Good chemical and oil resistance; UV resistant (UNE 211605); Water resistance: AD8 (suitable for submersion).
• Installation conditions: Suitable for open air, buried, in conduit and in tray; can be installed outdoors and buried without additional protection.
• Other: Meter-by-meter marking.

Disclaimer
The information provided is for reference only and is not legally binding. Specifications, values and technical data may change without notice. The official PDF technical datasheet is the authoritative source for verified product data.

Technical specifications

• Product family: POWERFLEX® BESS ULTRA
• Design voltage (AC): 1,8/3 (3,6) kV
• Design voltage (DC): 4,5 (5,4) kV
• Conductor material and class: Copper class 5 and class 6 up to 150 mm²
• Insulation material: XLPE (natural)
• Outer sheath material: PVC (flexible), black
• Standards: IEC 60502-1; CE; RoHS
• CPR reaction to fire: Eca (EN 50575)
• Thermal ratings: max conductor 90°C; short-circuit 250°C (max. 5 s); service -40°C; installation 0°C
• Mechanical: bending radius 5× (≤50 mm) / 6× (>50 mm); impact AG2
• Environmental: UV resistant (UNE 211605); water submersion AD8; good chemical & oil resistance
