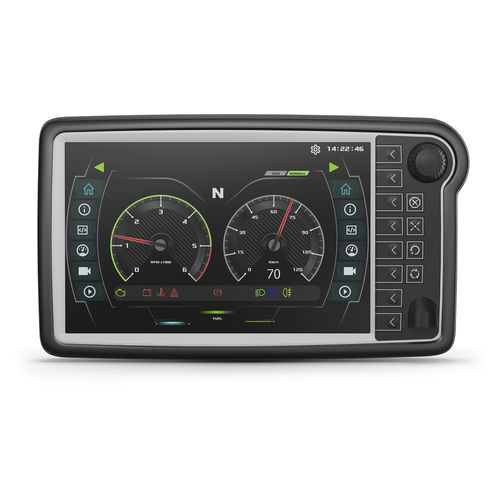

Control terminal with PCT touch screen OPUS A8s

with keyboardpanel-mount1200 x 800

The OPUS A8s sets new standards. Its high-resolution, 12.1” screen and aluminium casing give this model a high-class, modern look that you can take with you anywhere. In the full line range, the OPUS A8 features 1024 MB of RAM and two CANbus ports. Three analog video inputs, four D/A inputs and three digital outputs add further convenience. The device also has Bluetooth, an audio output and an USB port on the front of the panel for even greater connectivity. For situations requiring fewer connections, the basic line is a good choice. This has the same visual appearance, but differs in the technical features that it offers. Technical Data HOUSING Orientation landscape or portrait W376 x H214 x D76 mm excl. connector and cables MEMORY 1 GB DDR2 RAM 8 GB NAND flash AUDIO 1 x Audio output (left, right, GND) AC 97 compatible Output power: approx. 65 mW @32 Ohm ENVIRONMENTAL CONDITIONS Temperatures: operating -30° to +65°C storage -40° to +85°C Protection: IP 65 and IP 66 Mechanical Shock: Level 2 Random Vibration: Level 2 Sinusoidal Vibration: Level 2 CONNECTORS Main: AMP Seal, 26 pin Video: M12 round, 5 pole, B-coded Ethernet: M12 round, 4 pole, D-coded
