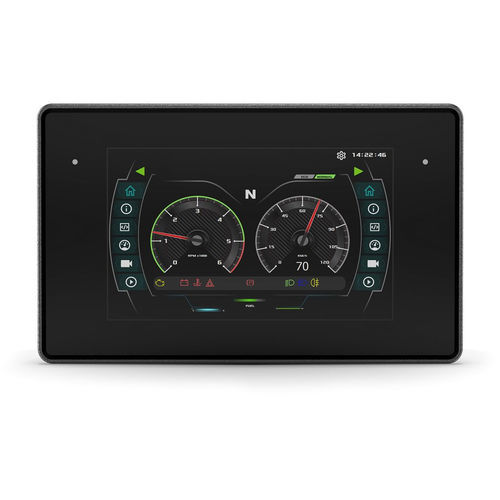

Capacitive touch screen HMI terminal OPUS B3e

panel-mount800 x 400NXP i.MX6

OPUS B3e DETAILSTECHNICAL DATA The screen size, the powerful processor and the attractive price characterize the new B series from Topcon. The OPUS B3 ECO represents a new HMI family designed for quick and easy implementation in municipal, utility and special purpose vehicles, as well as in agricultural and construction machinery. In addition to a 5-inch touch screen, an aluminum housing and a customizable frame, the HMI device has an optically bonded 800 cd / m² display, which guarantees excellent readability. The IP66 degree of protection and the operating range of -30 ° C to +75 ° C enable use in wide and extreme applications and environments. On the software side, the OPUS B3 ECO can be configured with the familiar programming languages ​​and tools such as OPUS Projector, CODESYS and C / Qt. Technical Data HOUSING Orientation landscape or portrait W 163 x H 99,7 x D 40,8 mm excl. connector and cables Aluminium die cast MEMORY 512 MB DDR2 RAM 4 GB NAND flash AUDIO 1 x Audio output (left, right, GND) AC97 compatible Output power: approx. 50mW PROGRAMMING ENVIRONMENT OPUS Projektor Codesys-Tools (3.X) ISO-Horizon C/Qt
