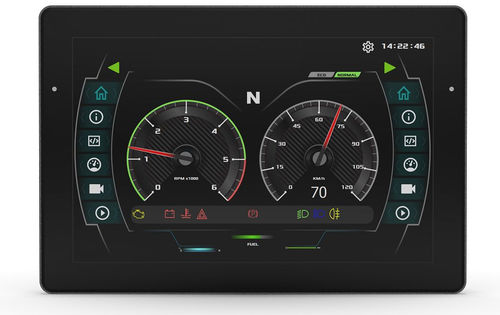

Capacitive touch screen HMI terminal OPUS B6e

panel-mountembedded1280 x 800

The screen size, the powerful processor and the attractive price characterize the new B series from Topcon. The OPUS B6 ECO represents a new HMI family designed for quick and easy implementation in municipal, utility and special purpose vehicles, as well as in agricultural and construction machinery. In addition to a 5-inch touch screen, an aluminum housing and a customizable frame, the HMI device has an optically bonded 1.000 cd / m² display, which guarantees excellent readability. The IP66 degree of protection and the operating range of -30 ° C to +75 ° C enable use in wide and extreme applications and environments. On the software side, the OPUS B6 ECO can be configured with the familiar programming languages ​​and tools such as OPUS Projector, CODESYS and C / Qt. Technical Data HOUSING Orientation landscape or portrait W 258,9 x H 177,7 x D 34,8 mm excl. connector and cables Aluminium die cast MEMORY 2 GB DDR2 RAM 8 GB NAND flash AUDIO 1 x Audio output (left, right, GND) AC97 compatible Output power: approx. 50mW ENVIRONMENTAL CONDITIONS Temperatures: operating -30° to +75°C storage -40° to +85°C Protection: IP 66 Mechanical Shock: Level 2 Random Vibration: Level 2 Sinusoidal Vibration: Level 2 CONNECTORS Main: AMP Seal, 26 pin Video: M12 round, 5 pole, B-coded Ethernet: M12 round, 4 pole, D-coded WIRELESS Via the USB Back connector, a wireless interface can be optional added. PROGRAMMING ENVIRONMENT OPUS Projektor Codesys-Tools (3.X) ISO-Horizon C/Qt SIGNALS Light sensor Multicolor-LED Speaker, approx. 90 dB(A) INTERFACES 4 x CANbus ISO 11898 CAN specification 2.0 B active 1x RS232 (only RxD, TxD, GND) 1 USB 2.0 full speed Ethernet 10/100 Mbit/s Base T
