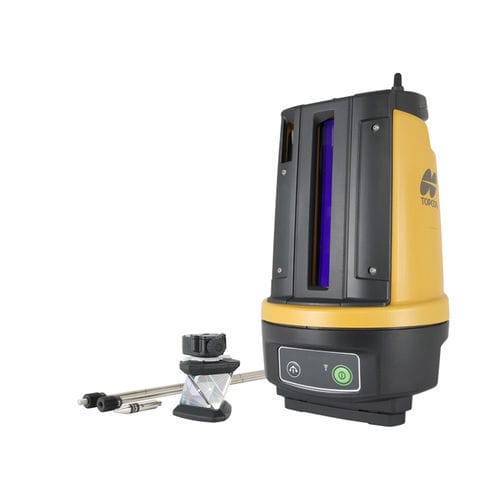

Automatic laser level LN-60

battery-poweredIP65

Product name
LN-60 Layout Navigator

Key features

• Self-leveling for fast instrument setup
• Expanded measurement range: 260 m diameter; tilt range +55° / −32°
• Real-time prism position update on mobile devices (20 Hz)
• Android device compatible controller; TopLayout app (free) for orientation, topographic measurement, layout guidance and data transfer
• Extended battery life: approx. 6 h per battery; two batteries supplied

Self-leveling
Automatic leveling after power-on removes the need to check a bubble level during installation and reduces setup time.

Easy guidance
The guide light uses clear green and red indicators to show the stake-out line to the operator for fast, unambiguous positioning.

Expanded measurement range
Tilt capability is extended to +55° elevation and −32° depression. Measurement coverage is a 260 m diameter, suitable for layout tasks with construction machinery and civil engineering stake-outs.

Android device as controller
Android devices run the free TopLayout app to act as the controller for orientation measurement, topographic measurement, layout operations/guidance and data transfer between the device and a computer.

Reduce working hours / Battery
Energy efficiency improvements provide approximately 120% longer usage times than conventional models, giving about 6 hours of continuous use per battery. Two batteries are included to support extended field operation.

Real-time mobile feedback
The prism location is displayed on the mobile device in real time with an update rate of 20 times per second, enabling smooth monitoring during stake-out operations.

Included lists from page

• Easy instrument set up with Self-leveling
• Expanded range of measurement — even sharp inclines are handled with ease
• Reduce working hours
• Easy guidance
• Android device as controller

Technical specifications

• Model name: LN-60
• Self-leveling: Automatic leveling after power-on
• Guide light: Green and Red lights for stake-out guidance
• Tilt angle range: Elevation +55°, Depression −32°
• Measurement radius / working range: 260 m diameter
• Mobile controller: Android device compatible; control software TopLayout (free)
• Prism update/display rate on mobile: 20 times per second
• Battery: Two batteries included; approx. 6 hours continuous use per battery; energy improvements vs conventional models ~+120%
