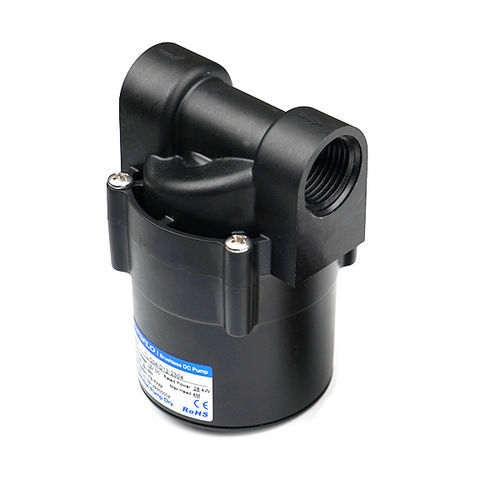

Circulation pump TL-C04

for hot waterwith brushless DC motorcentrifugal

Hot Water Circulation Pump C04-D (WRAS Pump ) The brushless DC micro water pump adopts advanced magnetic drive technology, the liquid rotates at high speed through the permanent magnet rotor, the static seal design replaces the traditional mechanical shaft seal, the liquid is completely isolated from the motor, avoids the problem of liquid leakage, and improves the service life and performance of the product. l The brushless motor has a lifetime in excess of >20,000 hours l No leakage: one-time injection rotor; static seal design, the liquid is completely isolated from the motor l Low noise at 1 meter distance: ≤40dB(A) l The parameter can replace the LAING pump D5 pump Application: Water Tank/Hot Water Circulation System Storage tanks Circulation Circulating systems for homes, RV’s and boats Industrial Cooling Technical Data Motor design: brushless DC motor Voltage Range: 12V or 24 V DC Max pressure:1.8MPa Continue work Pressure :1MPa The use of water temperature:'0~75℃ The environment temperature:'-20～40℃ Noise at 1 meter distance: ≤40dB(A) Acceptable media: tap water or cooling liquid Get more detail: http://www.topsflo.com/special-pumps/hot-water-circulation-pump.html
