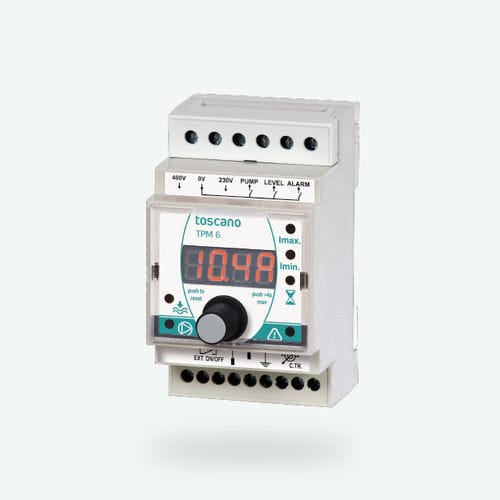

Phase protection relay TPM6overloadcurrentlevel
Add to favorites
Compare this product
Characteristics
- Measured/monitored value
- phase, overload, current, level
- Network
- single-phase, three-phase
- Applications
- for electric motors
- Mounting
- DIN rail
- Reset
- manual reset, automatic reset
- Other characteristics
- programmable, digital, configurable, time delay, adjustable, electronic, with fault indication
- Tripping current
Max.: 40 A
Min.: 0 A
Description
Control and protection module for motors and pumps.
- Protections: overload, underload, phase and level failure.
- 0…40A 230/400VAC
- Level relay and pressure switch connections
Codes and references
- 10002442 TPM6-230/400
Specifications
- Power supply voltage: 230 / 400 VAC
- Consumption: 2W
- Pilots: pump running, alarm, low level, maximum current, minimum current, reset time
- Protections: overload, underload, phase and level failure
- Display: 4-digit LED
- Mounting: Rail DIN 35 mm
- Output: pump (up to 12A), low level, alarm
- Current range: 0.6…40A
- Reset type: manual or timed (3…240 minutes)
