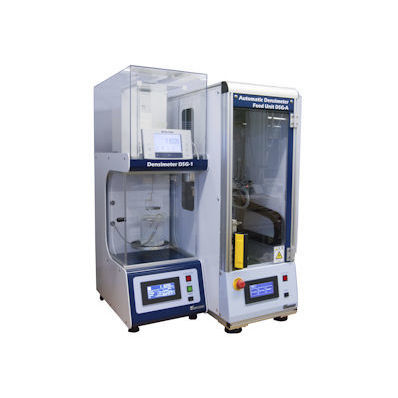

Digital density meter 265-DSG-A2

for rubber

The Fully Automatic Densimeter, model DSG-A2 is an immersion method density tester for plastic or rubber specimens which all measurements are performed automatically by simply setting the specimens. ISO 1183-1 - Plastics — Methods for determining the density of non-cellular plastics — Part 1: Immersion method, liquid pycnometer method and titration method ISO 2781 - Rubber, vulcanized or thermoplastic — Determination of density ASTM D792 - Standard Test Methods for Density and Specific Gravity (Relative Density) of Plastics by Displacement Measurement Unit Balance unit capacity - 100g Balance unit resolution - 0.0001g (0.1mg) Beaker lifting mechanism - Motorized Immersion time range - 1 to 999sec. Power supply - Single-phase, AC100-240V, 50/60Hz, 0.1kVA Dimensions - W290 × D443 × H890mm Weight - approx. 35kg Automated Specimen Feeder Specimen Dimensions (e.g.) - ● 40×40×2mm ● ∅40×2mm etc. Note: Actual specimen needs to be confirm before quotation. Additional charge may be required for design change depending on specimen property/shape/dimensions. Number of Specimens - max. 64 specimens (vary depending on dimensions) Power Supply - Single-phase, AC100-240V, 50/60Hz, 2kVA Compressed Air - 0.3MPa Dimensions - W300 × D600 × H850mm Weight - approx. 40kg
