Pressure measuring system 750
Add to favorites
Compare this product
Characteristics
- Measured physical value
- pressure
Description

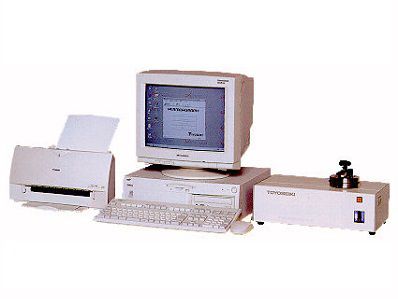

The Permeagraph measures gas permeability of porous samples. Applying differential pressure generated to sample and evaluates permeability from travelling speed of piston.
Area gas passes through - 706.86mm² (∅30mm)
Measuring pressure - 0.67 to 93.3kPa
Power supply - Single-phase, AC100V, 50/60Hz, 0.2kVA (or specify)
Dimensions - W420 × D250 × H220mm
Weight - Approx. 10kg
Catalogs
No catalogs are available for this product.
See all of Toyoseiki‘s catalogsOther Toyoseiki products
Gas Transmission Rate / Water Vapour Transmission Rate
