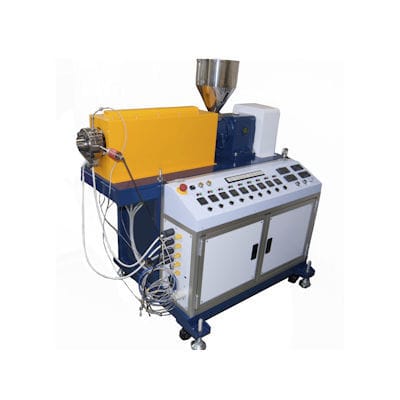

Single screw extruder ER-1

Add to favorites

Compare this product

Characteristics

Number of screws

single screw

Output

8 kg/h
(17.637 lb/h)

Screw diameter

30 mm
(1.2 in)

Maximum speed

Max.: 100 rpm
(628 rad.min-1)

Min.: 10 rpm
(63 rad.min-1)

Torque

700 Nm
(516 ft.lb)

Overall length

1,400 mm
(55 in)

Overall width

940 mm
(37 in)

Total height

1,490 mm
(59 in)

Weight

520 kg
(1,146 lb)

Power

3.7 kW
(5.03 hp)

Description

Laboratory-scale single-screw extruder that can share various options of the modular torque rheometer systems “Labo Plastomill”. Extrusion output - 8kg/h Screw diameter - ∅30mm L/D - 28 Speed - 10 to 100rpm Max. torque - 700Nm Screw - Full-flight Compression ratio - CR=3.00 (Standard) Motor - 3.7kW, Inverter-driven Cylinder - 4 zones, Max. temperature 350°C Hopper capacity - 10L Temperature controller - – Standard: 6 points (Cylinder×4, Flange×1, Die×1） – Option : 9 points Power supply - Three-phase, AC200V, 50/60Hz, 100A Cooling water requirement - Approx. 10L/min Dimensions - W940 × D1400 × H1490mm Weight - Approx. 520kg
