Plastic rheometer Plastomill™

laboratorybench-top

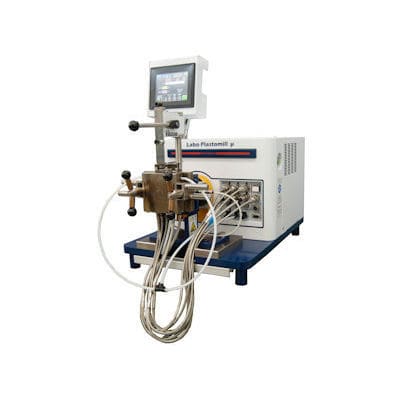

The Labo Plastomill™ Micro is a bench-top experimental system for evaluating kneadability and extrusion properties of very small quantities of laboratory synthesized samples, nanoparticle samples (such as carbon nanotubes, silica, titanium oxide), specialized and expensive samples, and composite materials in nature etc. Features – Torque (current value conversion), resin temperature, and pressure can be measured. (pressure transducer optional) – Measurement can be performed by recalling registered conditions on the LCD touch screen. – The data curve is displayed on the LCD touch screen. – Safety features including torque, pressure, and temperature limiters and mixer disassembly safety circuit. – Optional data processing software allow to import measurement data, perform various characteristic value calculations, overlay data display, and convert files for export to spreadsheet software. Max. torque - 40Nm Max. speed - 100rpm Drive output - 0.4kW Torque detection - Electric current conversion Torque measurement accuracy - ±10% Pressure & temperature amplifier - 1 channel each Temperature controller - 3 channels Safety devices - Torque limiter, temperature limiter, emergency stop switch, mixer disassembly safety circuit, leakage breaker Power supply - Single-phase, AC100V, 50/60Hz, 3kVA (or specify) Compressed air requirement - 0.5MPa, 40L/min. Dimensions - W400 x D600 x H610mm (base unit) Weight (approx.) - 50kg
