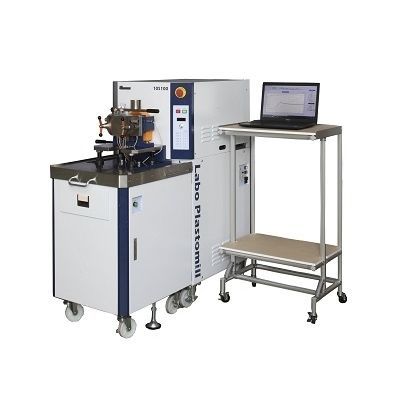

Plastic rheometer Plastomill™

rubberautomaticmodular

The Labo Plastomill™ incorporates small size mixer and extruder and is used to evaluate prosessability i.e. mixing, extruding, gelation, dynamic thermal stability, etc. of plastics and rubber, etc. Knowing processing characteristics of polymer materials such as thermoplastic resins, thermosetting resins and elastomers is very important for cost reduction and quality control. In developing of new materials in addition to knowing the processing characteristics it is also important to find out through simulation whether the material can be molded or not and determine appropriate processing conditions. This Labo Plastomill perform these tests on small quantities of samples, mainly the following tests. • Processing characteristics evaluation test by small mixer (30 to 90cm³) • Simulation and other evaluation tests by small extruder (Ø20mm) The Labo Plastomill is a practical testing machine (shear force acts) which provides many reliable information necessary for molding process and is already being used in numerous industries and related fields for this purpose. Base Units (Drive Units) The computer controls the machine and performs data processing of various characteristic values taking torque, resin temperature and pressure as parameters. All controls and data processing are performed by computer. By recalling already registered testing conditions, filling sample and then starting the machine, waveform graphs of torque, pressure, resin temperature and energy, etc. are displayed and measurement proceeds according to the testing conditions. In mixer test, programmed control operation of temperature and revolution is also possible.
