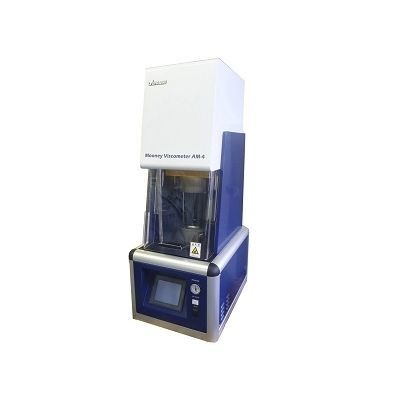

Mooney viscometer AM-4

processautomaticbenchtop

The Mooney Viscometer measures Mooney viscosity and Mooney scorch of un-vulcanized rubber according to ISO 289. Accuracy & Calibration Management ● Temperature accuracy is ±0.3°C compensation with each error compensation function. ● Temperature sensor error, temperature amplifier error, etc. can be easily corrected on the LCD touch screen. ● Mooney values can be automatically calibrated with a built-in weight. Improved functionality & operability ● You can register test conditions and pass/fail criteria. ● Operation is automatic except for registration recall and sample loading/unloading. ● Test results, data curves, and averages are printed on a small printer (optional). ● Recall of past test results (up to 100) ● Maintenance can be performed quickly by the check function of the main unit. Safety ● Equipped with overload and overheat protection devices. ● When the windshield cover is closed, the hot plate is lowered and the test starts, ensuring temperature stability and safety. Economy ● One PC (optional) can process data from multiple testers (Mooney Viscometer and MDR). The Rotorless Mooney Viscometer model RLM-4 conducts Mooney viscosity test and Mooney Scorch test. In order to eliminate the problem of frictional resistance of rotor of conventional Mooney Viscometer, this model employs a rotorless mechanism.
