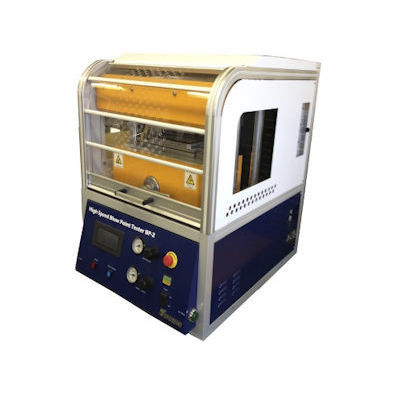

Mechanical testing machine BP-2

automaticfor composite materialsbenchtop

When a rubber-laden composite material is vulcanized under pressure, bubbles are generated within the material due to insufficient vulcanization in the final phase of the process. The blow point stands for the minimum vulcanization level required for eliminating the existence of these bubbles. To make a product with no bubbles in a shorter time of vulcanization, it is very important to measure the blow point. The blow point may change according to the composition, mixing method, temperature conditions, etc. of the rubber-laden materials. Therefore, it is necessary to make measurements very frequently during quality control of vulcanized rubber, research and development of rubber composites, and other operations. Features and Benefits • Operation can be easily and automatically performed from the PC. • After vulcanization, the mold is cut, the position of air bubbles is measured, and the measured value is input to the testing software to easily determine the blow point value. • Three molds of different thicknesses are available so that blow point measurements can be made to meet your needs. • CE marking model is available (Option)
