Manual press 667

for plasticsautomatic

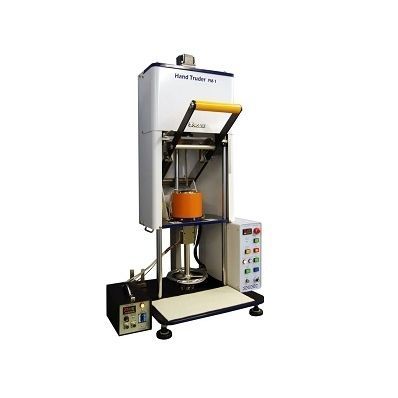

The Hand Truder pelletizes a small amount of samples in interminate from and powder or forms them into small dumbbell test pieces through the replacement of pelletizer with mold equipped to the bottom of heating furnace unit. Molder Temperature range - RT+20 to 400°C Cylinder - ∅12 x L130mm (by replacement of the inner cylinder) Sample capacity - Max. 14cm³ Operation of injection - Manual (Up-down operation of lever) Mold (Standard) - Small size test piece (JIS K 7162-1BA) etc. Dimensions - W603 x D866 x H1175mm Mass (Approx.) - 110kg Power supply - Main unit: Single-phase, AC100V, 50/60Hz, 1.2kVA Temp. controller for mold: Single-phase, AC100V, 50/60Hz, 0.5kVA Pelletizer Temperature range - RT+20 to 400°C Cylinder - ∅20 × L130mm Sample capacity - Max. 40cm³ Size of pellet - Approx. ∅2.5 × 2.5mm (Length can be changed) Dimensions - W603 × D866 × H1175mm Mass (Approx.) - 110kg Power supply - Main unit: Single-phase, AC100V, 50/60Hz, 1.2kVA Cleaner: Single-phase, AC100V, 50/60Hz, 0.8kVA
