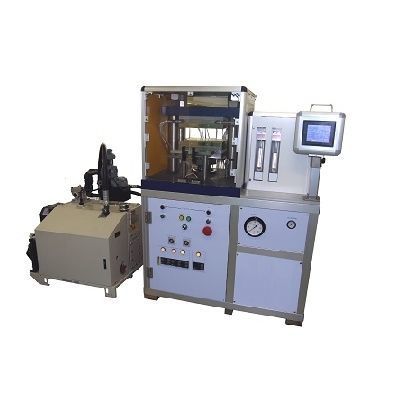

Electric press SAP-1

laboratoryautomatic

In order to permit reliable sample formation not possible with conventional machine, the Fine Labo Press, incorporates automatic deforming operation and a mechanism for cooling at constant rate by controlling the flow of cooling water to control the cooling rate. Pressure - 100kN to 500kN Dimensions of heating plate - 300 × 300mm Stroke - 100mm Temperature range - RT+25°C to 300°C Heating system - Electrical (SSR control) Temperature control - Digital system, PID control Preheat time - Max. 99min.59sec. Molding time - Max. 99min.59sec. Deairing time - 0 to 60sec. Dearing frequency - 0 to 99times Average cooling rate - 10±5°C/min. or 15±5°C/min. Power requirement - Three-phase, AC200V, 50/60Hz, 30A (SAP-1 mainbody) Three-phase, AC200V, 50/60Hz, 30A (Hydraulic unit) Compressed air requirement - 0.4MPa, 10L/min. Cooling water requirement - 25L/min. (Minimum pressure 0.15MPa) Hydraulic unit noise level - Max. 73dB Dimensions - W1170 × D660 × H1435mm (SAP-1 mainbody) W925 × D630 × H1100mm (Hydraulic unit) Weight - Approx. 600kg (SAP-1 mainbody)
