Gasoline forklift 8FGU series
ride-onoutdoorhandling

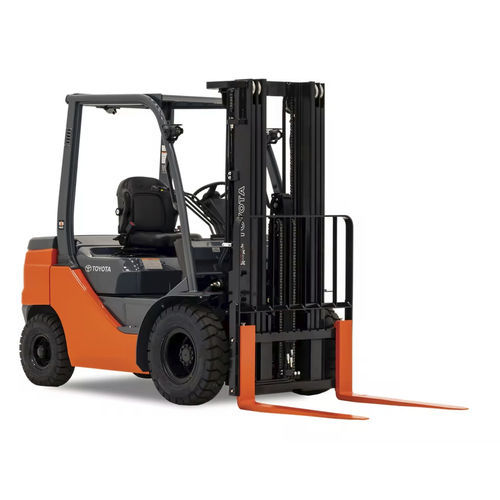

Gasoline forklift - 8FGU series - Toyota Industrial Equipment - ride-on / outdoor / handling
Gasoline forklift - 8FGU series - Toyota Industrial Equipment - ride-on / outdoor / handling
Gasoline forklift - 8FGU series - Toyota Industrial Equipment - ride-on / outdoor / handling - image - 2
Gasoline forklift - 8FGU series - Toyota Industrial Equipment - ride-on / outdoor / handling - image - 3
Gasoline forklift - 8FGU series - Toyota Industrial Equipment - ride-on / outdoor / handling - image - 4
Add to favorites
Compare this product

Characteristics

Motor type
gasoline
Operator
ride-on
Applications
handling, outdoor
Other characteristics
4-wheel, counterbalanced, high-performance, pneumatic tire
Carrying capacity

Min.: 3,000 lb
(1,360.8 kg)

Max.: 6,500 lb
(2,948.4 kg)

Lifting height

Min.: 80 in

Max.: 258 in

Overall width

42.1 in, 45.3 in, 48.8 in

Load center distance

15.9 in, 18.5 in, 19.1 in

Weight without load

Min.: 5,500 lb
(2,494.8 kg)

Max.: 9,680 lb
(4,390.8 kg)

Axle loading with maximum load front

Min.: 7,560 lb
(3,429.2 kg)

Max.: 14,130 lb
(6,409.3 kg)

Axle loading with maximum load rear

Min.: 940 lb
(426.4 kg)

Max.: 2,080 lb
(943.5 kg)

Axle loading without load front

Min.: 2,500 lb
(1,134 kg)

Max.: 3,510 lb
(1,592.1 kg)

Axle loading without load rear

Min.: 3,000 lb
(1,360.8 kg)

Max.: 6,240 lb
(2,830.4 kg)

Track width front

34.8 in, 37.8 in, 39.8 in

Track width rear

35.2 in, 38 in

Height of mast when lowered

84.5 in, 85.3 in

Free lift

5.3 in, 5.7 in, 6.1 in

Overall height with mast raised

179.3 in, 179.5 in, 179.7 in

Height to top of overhead guard

81.9 in, 83.1 in, 85.5 in

Length to fork face

Min.: 89.6 in

Max.: 110.2 in

Ground clearance under mast with load

3.7 in, 3.9 in, 4.5 in

Ground clearance at center of wheelbase with load

4.5 in, 5.5 in, 7.3 in

Turning circle radius

1.4 in, 5.9 in, 7.5 in

Travel speed

Min.: 10.9 mph
(17.5 km/h)

Max.: 11.8 mph
(19 km/h)

Lifting speed

Min.: 500 mm/s

Max.: 680 mm/s

Lowering speed

500 mm/s, 550 mm/s

Rated drawbar pull

Min.: 590 kgf

Max.: 1,990 kgf

Gradeability

Min.: 20 %

Max.: 45 %

Rated output

Min.: 51 ch
(51 hp)

Max.: 58 ch
(58 hp)

Cubic capacity

45 l, 60 l
(11.9 gal, 15.9 gal)

Maximum operating pressure

2,275 psi

Oil flow

17 us gal/min, 20 us gal/min, 21 us gal/min
(64.4 l/min, 75.7 l/min, 79.5 l/min)

Description

Dependable, durable, and engineered with ergonomics in mind, the Core IC Pneumatic counterbalance forklift can maneuver nearly any typical material handling load. With a lift capacity range of 3,000–6,500 lbs., the Toyota Core IC Pneumatic forklift is the premier material handling solution for most outdoor applications. Additionally, this lift comes equipped with high-performance pneumatic tires that provide a reassuringly strong grip on uneven surfaces. Get ready to get stuff done. System of Active Stability (SAS)™ LP / Dual Fuel Performance More Get Up, Get Out and Go Toyota's Core IC Pneumatic Forklift provides fast travel speeds and superior torque, increasing productivity and overall power to take on the toughest jobs. In fast-paced operations, pnuematic forklifts can also be operated for longer periods of time before needing to be refuelled due to their larger fuel tank. More power for heavy loads. More durability for heavy and harsh conditions. More grip for uneven surfaces. More material handling prowess to remove all items from your outdoor to-do list. Whatever the challenge, the Toyota Core IC Pneumatic is ready for it. Visibly Better Forward, up, back. Whichever way you look, you'll appreciate the clear, open sight lines of the Core IC Pneumatic Counterbalance Forklift. The mast hose is hidden, the top skid bars are oriented for maximum visibility, and the mast crossmember does not block the view of the fork tips. The standard multifunction LCD display, conveniently located on the dashboard, features QR code diagnostics for easy access to operational and performance data.
