LPG forklift 50-8FG series
ride-onoutdoorhandling

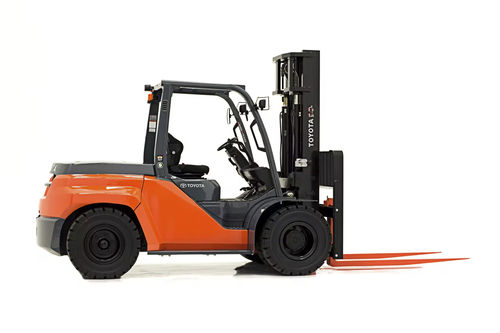

LPG forklift - 50-8FG series - Toyota Industrial Equipment - ride-on / outdoor / handling
LPG forklift - 50-8FG series - Toyota Industrial Equipment - ride-on / outdoor / handling
LPG forklift - 50-8FG series - Toyota Industrial Equipment - ride-on / outdoor / handling - image - 2
LPG forklift - 50-8FG series - Toyota Industrial Equipment - ride-on / outdoor / handling - image - 3
Add to favorites
Compare this product

Characteristics

Motor type
LPG
Operator
ride-on
Applications
handling, outdoor
Other characteristics
4-wheel, counterbalanced, pneumatic tire, heavy-duty, all-terrain
Carrying capacity

13,500 lb, 15,500 lb, 17,500 lb
(6,123.5 kg, 7,030.7 kg, 7,937.9 kg)

Lifting height

Min.: 120.5 in

Max.: 239 in

Overall width

78.5 in

Load center distance

22.8 in, 23 in, 23.2 in

Weight without load

Min.: 18,720 lb
(8,491.2 kg)

Max.: 22,040 lb
(9,997.2 kg)

Axle loading with maximum load front

Min.: 28,650 lb
(12,995.4 kg)

Max.: 35,110 lb
(15,925.6 kg)

Axle loading with maximum load rear

Min.: 3,300 lb
(1,496.9 kg)

Max.: 4,570 lb
(2,072.9 kg)

Axle loading without load front

Min.: 8,120 lb
(3,683.2 kg)

Max.: 8,480 lb
(3,846.5 kg)

Axle loading without load rear

Min.: 10,240 lb
(4,644.8 kg)

Max.: 13,920 lb
(6,314 kg)

Track width front

57.9 in

Track width rear

57.5 in

Height of mast when lowered

96.8 in, 102.8 in

Free lift

4.9 in, 5.1 in

Overall height with mast raised

174.6 in, 174.8 in

Height to top of overhead guard

90.9 in

Length to fork face

Min.: 137.4 in

Max.: 141.3 in

Ground clearance under mast with load

4.9 in

Ground clearance at center of wheelbase with load

9.8 in

Turning circle radius

127 in, 129 in, 130.5 in

Travel speed

11.5 mph, 11.8 mph, 12 mph
(18.5 km/h, 19 km/h, 19.3 km/h)

Lifting speed

350 mm/s, 420 mm/s, 430 mm/s

Lowering speed

480 mm/s, 530 mm/s

Rated drawbar pull

Min.: 2,010 kgf

Max.: 4,500 kgf

Gradeability

Min.: 19 %

Max.: 32 %

Rated output

66 kW, 88 kW
(89.7 hp, 119.6 hp)

Cubic capacity

130 l
(34.3 gal)

Maximum operating pressure

2,990 psi

Oil flow

128 l/min
(33.8 us gal/min)

Description

The Toyota Large IC Pneumatic Counterbalance Forklift can lift up to 17,500 lbs. and can easily navigate in gravel, dirt, and asphalt. Popular on construction sites as well as in lumber yards, brick and stone distribution centers, specialized warehouses, and heavy-duty manufacturing plants, this large heavy-duty forklift is engineered to be extremely durable and efficient in all conditions. Special Features System of Active Stability (SAS)™ 2-Speed Transmission Performance Big Jobs for a Big Forklift Lifting up to 17,500 lbs., the Large IC Pneumatic forklift is a workhorse when lifting lumber, bricks, piping, and other heavy materials. Powered by LPG, this forklift can handle the most difficult conditions. This lift also includes Active Mast Control (AMC), which responds automatically to enhance the stability of loads handled at high lift heights. Extremely durable and suitable for tough conditions, the Large IC Pneumatic delivers the goods. Quality, Durability, & Value Toyota’s Large IC Pneumatic Counterbalance Forklift comes with a Toyota-designed LP engine for powerful performance as well as force-cooled wet disc brakes to reduce maintenance costs and downtime. This product comes with a standard LCD multifunction display with a built-in analyzer that provides self-diagnostics. The Large IC Pneumatic Forklift has welded, roll-formed overhead guard pillars to provide the operator with maximum protection for improved entry, exit, and load visibility.
