LPG forklift 50-8FG series
ride-onoutdoorhandling

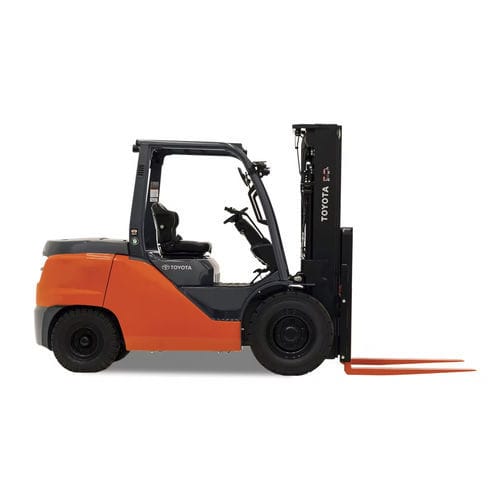

LPG forklift - 50-8FG series - Toyota Industrial Equipment - ride-on / outdoor / handling
LPG forklift - 50-8FG series - Toyota Industrial Equipment - ride-on / outdoor / handling
LPG forklift - 50-8FG series - Toyota Industrial Equipment - ride-on / outdoor / handling - image - 2
LPG forklift - 50-8FG series - Toyota Industrial Equipment - ride-on / outdoor / handling - image - 3
Add to favorites
Compare this product

Characteristics

Motor type
LPG
Operator
ride-on
Applications
handling, outdoor
Other characteristics
4-wheel, counterbalanced, pneumatic tire, for medium loads
Carrying capacity

Max.: 11,000 lb
(4,989.5 kg)

Min.: 8,000 lb
(3,628.7 kg)

Lifting height

Max.: 239 in

Min.: 120 in

Overall width

53.1 in, 57.1 in

Load center distance

19.9 in, 21.5 in, 21.9 in

Weight without load

Max.: 16,010 lb
(7,262 kg)

Min.: 12,860 lb
(5,833.2 kg)

Axle loading with maximum load front

Max.: 24,220 lb
(10,986 kg)

Min.: 18,070 lb
(8,196.4 kg)

Axle loading with maximum load rear

Max.: 2,840 lb
(1,288.2 kg)

Min.: 2,510 lb
(1,138.5 kg)

Axle loading without load front

Max.: 6,820 lb
(3,093.5 kg)

Min.: 5,700 lb
(2,585.5 kg)

Axle loading without load rear

Max.: 9,190 lb
(4,168.5 kg)

Min.: 7,010 lb
(3,179.7 kg)

Track width front

43.9 in, 45.3 in

Track width rear

43.3 in

Height of mast when lowered

83 in, 86.5 in, 96.5 in

Free lift

4.3 in, 4.7 in

Overall height with mast raised

168.1 in, 174.4 in

Height to top of overhead guard

87 in, 90.6 in

Length to fork face

Max.: 124.8 in

Min.: 115.2 in

Ground clearance under mast with load

4.7 in

Ground clearance at center of wheelbase with load

7.9 in, 9.1 in

Turning circle radius

103 mm, 104.5 mm, 108.5 mm, 110.5 mm
(4.1 in)

Travel speed

Max.: 14.7 mph
(23.7 km/h)

Min.: 13.4 mph
(21.6 km/h)

Lifting speed

Max.: 545 mm/s

Min.: 505 mm/s

Lowering speed

Max.: 540 mm/s

Min.: 480 mm/s

Rated drawbar pull

Max.: 3,500 kgf

Min.: 1,400 kgf

Gradeability

Max.: 37 %

Min.: 21 %

Rated output

65 kW, 87 kW
(88.4 hp, 118.3 hp)

Cubic capacity

90 l, 120 l
(23.8 gal, 31.7 gal)

Maximum operating pressure

2,630 psi

Oil flow

128 l/min
(33.8 us gal/min)

Description

The Toyota Mid IC Pneumatic Counterbalance Forklift, with a capacity of 8,000–11,000 lbs., is a premier material handling solution for most mid-capacity outdoor applications. Powerful, durable, and engineered with ergonomics in mind, the Mid IC Pneumatic Forklift is ideal for long days in the lumber yard, on construction sites, and most other outdoor applications. System of Active Stability (SAS)™ 2-Speed Transmission Performance Power and Ergonomics The Mid IC Pneumatic Forklift makes working days pleasantly productive, even when they are long. It's packed with amenities and operational efficiencies, such as a premium comfort seat and standard multifunction LCD display. This lift also includes Active Mast Control (AMC), which responds automatically to improve the stability of loads handled at high lifting heights. You can count on the Mid IC Pneumatic when you need extra muscle to move heavy loads. 360 Degrees of Quality, Durability and Value Toyota's Mid IC Pneumatic Counterbalance Forklift comes with an LP engine for powerful performance, as well as force-cooled wet disc brakes to reduce maintenance costs and downtime. This product comes with a standard LCD multifunction display with a built-in analyzer that provides self-diagnosis. The Mid IC Pneumatic Forklift has welded and laminated top protection pillars to provide the operator with maximum protection to improve entry and exit and visibility of the load.
