Adhesion test kit CC2000

manualportablecrosscut

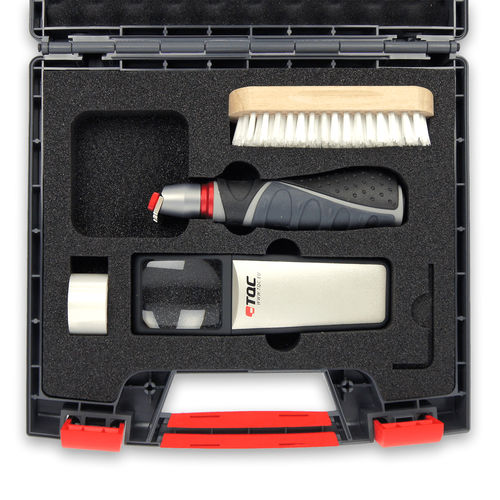

The TQC CC2000 Cross Cut Adhesion Test KIT is used to test the adhesion of dry coats of paint on their substrate by means of a series of cuts through the coating. Two series of parallel cuts cross angled to each other to obtain a pattern of 25 or 100 similar squares. The ruled area is evaluated by using a table chart after a short treatment with a stiff brush, or adhesive tape for hard substrates. The cutting knife of the TQC Cross Cut Adhesion Test CC2000 is easy to exchange without the use of extra tools. The self positioning knife bracket of the TQC Cross Cut Adhesion Test CC2000 ensures equal pressure on the cutting knife. Each TQC Cross Cut Adhesion Test KIT CC2000 contains a grip with cutter, a brush, an illuminated loupe and a roll of adhesive tape acc. ISO 2409. Knives and tape can be ordered as a spare as well ORDERING INFORMATION SP1690 - TQC Cross Cut Adhesion Test CC2000, 6 blades, cutting distance 1 mm Acc. to ISO 2409 & ASTM D3359 SP1691 - TQC Cross Cut Adhesion Test CC2000, 6 blades, cutting distance 2 mm Acc. to ISO 2409 & ASTM D3359 SP1692 - TQC Cross Cut Adhesion Test CC2000, 6 blades, cutting distance 3 mm Acc. to ISO 2409 SP1699 - TQC Cross Cut Adhesion Test CC2000, 11 blades, cutting distance 1 mm Acc. to ASTM D3359 <2009 SP1700 - TQC Cross Cut Adhesion Test CC2000, 11 blades, cutting distance 1.5 mm Acc. to ASTM D3359 <2009
