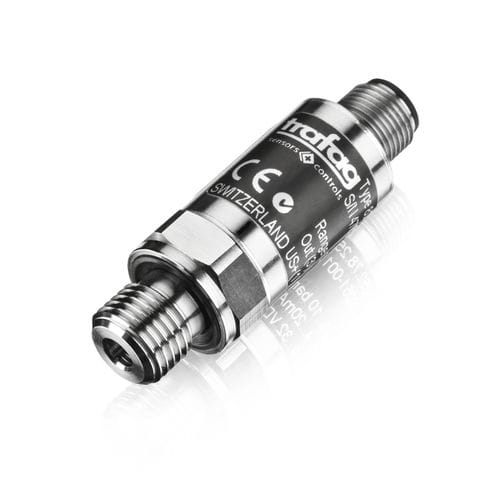

Relative pressure transmitter NAH 8254thin-film4-20 mAthreaded
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative
- Technology
- thin-film
- Output
- 4-20 mA
- Mounting
- threaded
- Fluid
- for gas, for liquids
- Material
- stainless steel, steel
- Protection level
- IP65, IP67, rugged, EMC
- Applications
- for refrigeration circuits, for water treatment, for OEM
- Other characteristics
- two-wire, compact, CE, temperature-compensated, high-temperature, fast response time, fully-welded, high-resolution, with pulse-snubber, miniature
- Pressure range
Min.: 0 bar
(0 psi)Max.: 600 bar
(8,702.26 psi)- Process temperature
Min.: -40 °C
(-40 °F)Max.: 125 °C
(257 °F)
Description
Main features
Measuring accuracy 0.3 %
Completely welded steel sensor system without additional seals
Excellent long-term stability
Optional: 5-fold overpressure resistance
Optional: Switching output 1 or 2 PNP transistors
About
The pressure transmitter NAH 8254 with increased accuracy of 0.3% and optional switching outputs has an exceptionally long-term stable thin-film-on-steel sensor cell with triple (optionally 5-fold) overpressure protection. The robust design and the wide temperature range of -40°C to +125°C make the NAH 8254 the ideal solution when pressure needs to be measured accurately and reliably under rough environmental conditions.
