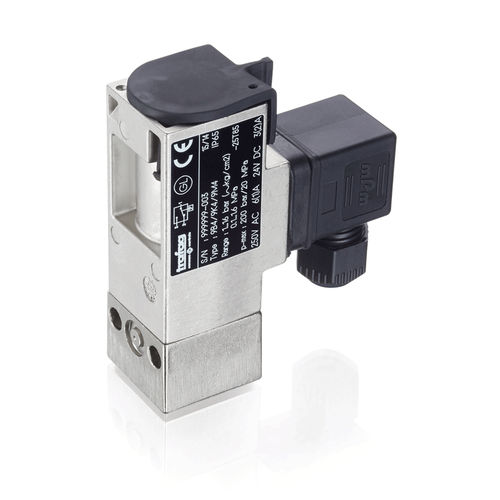

Bellows pressure switch PST4B 9B4differentialstainless steelrugged
Add to favorites
Compare this product
Characteristics
- Technology
- bellows
- Pressure type
- differential
- Material
- stainless steel
- Protection level
- rugged, IP65
- Applications
- for marine applications, for railway applications
- Other characteristics
- compact
- Pressure range
Min.: -0.6 bar
(-8.7 psi)Max.: 40 bar
(580.15 psi)- Process temperature
Min.: -40 °C
(-40 °F)Max.: 125 °C
(257 °F)
Description
Main features
• Improved vibration resistance
• Compact design
• Rugged housing
• Protection IP65
• Any mounting position possible
About
The 9B4 of the Picostat series is based on our long lasting experience in the shipbuilding and railway sector. This further improved version offers high vibration resistance within a compact body and is suitable for a wide temperature range.
