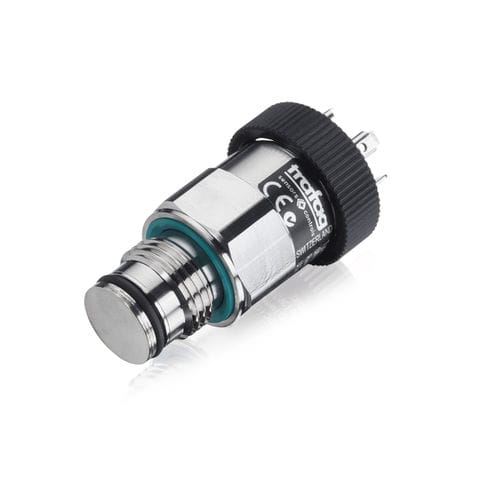

Relative pressure transmitter FPT 8236

membrane4-20 mAratiometric

The FPT 8236 pressure transmitter impresses with an absolutely smooth and robust flush-mounted measuring diaphragm made of corrosion-resistant duplex steel. Trafag’s proprietary thin-film-on-steel sensor technology ensures a wide temperature range and excellent long-term stability. Applications Machine tools Food Industry Process technology Water treatment Hydraulics Main features Flush membrane with smooth and plain surface Membrane in Duplex steel 1.4462 Completely welded sensor system Excellent long-term stability Measuring range - 0 ... 1 to 0 ... 100 bar ; 0 ... 15 to 0 ... 1500 psi Measuring principle - Thin-film-on-steel Applications Food Industry Hydraulics Machine tools Process technology Water treatment Accuracy @ 25°C typ. - ± 0.5 % FS typ. Output signal - 4 ... 20 mA, 0 ... 5 VDC, 1 ... 6 VDC, 0 ... 10 VDC, 0.5 … 4.5 VDC ratiometric Electrical connections - EN175301-803-A (DIN43650-A); M12x1; Industrial standard, contact distance 9.4 mm; Packard Metri Pack; Cable Pressure connections - G1/2" m, flush membrane Media temperature - –10°C ... +125°C Ambient temperature - –10°C ... +125°C Cable PUR: -10°C ... +70°C www.trafag.com/H72343
