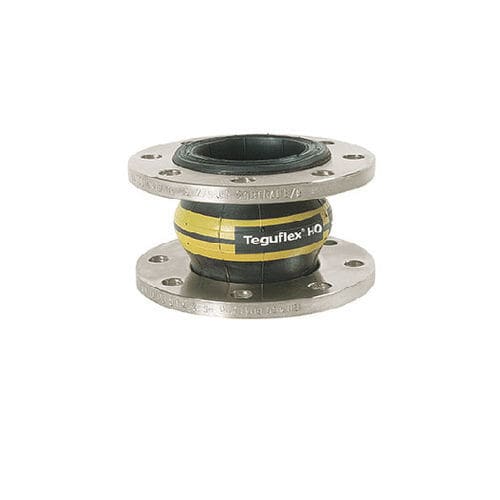

Rubber pipe expansion joint TEGUFLEX® W HOroundflangefor water
Add to favorites
Compare this product
Characteristics
- Material
- rubber
- Configuration
- round
- Installation system
- flange
- Applications
- for water
- Nominal diameter
50 mm, 125 mm, 150 mm, 200 mm, 300 mm
(1.97 in, 4.92 in, 5.91 in, 7.87 in, 11.81 in)- Operating temperature
Max.: 110 °C
(230 °F)Min.: -25 °C
(-13 °F)- Length
150 mm, 200 mm
(5.91 in, 7.87 in)- Pressure
6 bar, 10 bar, 16 bar
(87 psi, 145 psi, 232.1 psi)
Description
Application
Oils, water mixed oils, compressed air/oils up to 110°C
Advantages
Compensate thermal elongation Isolate vibration and absorb pressure surges Correct misalignments
Design
A wide range of moulded standard bellows up to 1000 mm with a large variety of rubber linings to meet almost all kinds of medium.
Inner tube
HNBR, black, fluted
Reinforcement
Aramid
Cover
HNBR, black, smooth, oil and weather resistant
Additional information
Vacuum ring (316Ti/316L), flameguards, PTFE safety shields on request.
Type Approval: DNV-GL
PED (2014/68/EU)
Couplings Fittings
Turnable flanges in zinc plated carbon steel S235JR/S275JR
Other material: stainless steel 316, hot-dip galvanized, EPOXY painting, etc.
EN 1092 PN6/10/16 - ASME B16.5 150lbs - Other types on request.
