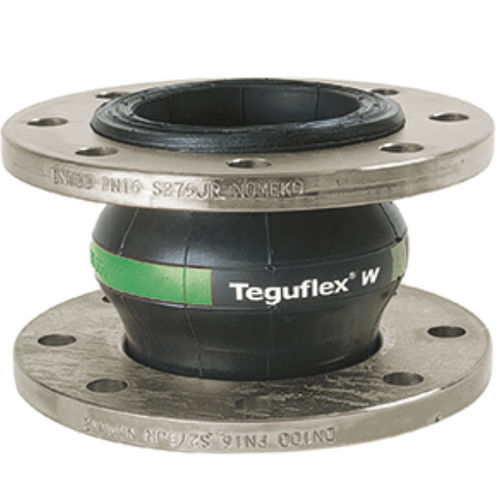

Rubber pipe expansion joint TEGUFLEX® Wroundflangefor chemicals
Add to favorites
Compare this product
Characteristics
- Material
- rubber
- Configuration
- round
- Installation system
- flange
- Applications
- for chemicals
- Nominal diameter
Max.: 500 mm
(19.69 in)Min.: 25 mm
(0.98 in)- Operating temperature
Max.: 90 °C
(194 °F)Min.: -25 °C
(-13 °F)- Length
150 mm, 200 mm
(5.91 in, 7.87 in)- Pressure
8 bar, 10 bar, 16 bar
(116 psi, 145 psi, 232.1 psi)
Description
Strong and/or concentrated acids, compressed air containing oil aerosols, etc.
Advantages
Compensate thermal elongation Isolate vibrations and absorb pressure surges Correct misalignments
Design
A wide range of moulded standard bellows up to 1000 mm with a large variety of rubber linings to meet almost all kinds of medium.
Inner tube
CSM, black, fluted
Reinforcement
Nylon cord
Cover
CR (chloroprene), black, smooth, oil and weather resistant
Additional information
Inner liner PTFE, vacuum ring (316Ti/316L), flameguards, PTFE safety shields on request.
PED (2014/68/EU)
Couplings Fittings
Turnable flanges in zinc plated carbon steel S235JR/S275JR
Other material: stainless steel 316, hot-dip galvanized, EPOXY painting, etc.
EN 1092 PN6/10/16 - ASME B16.5 150lbs. Other types on request.
